Product Description

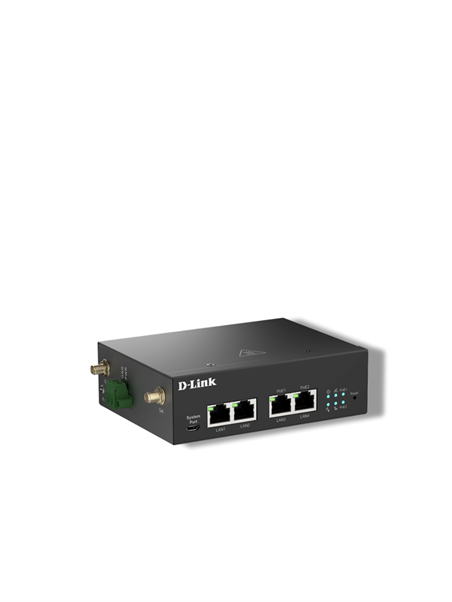

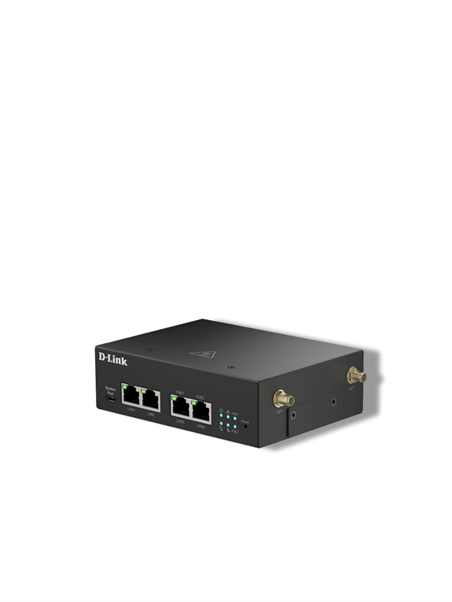

5G Multi-Connect PoE Modem
DWM-314-GP
• 5G speeds of up to 3.4 Gbps1 for ultra-fast Internet access and data transfer
• 2 x 10/100/1000 Ethernet LAN ports for high-speed connectivity
• 2 x 10/100/1000 Ethernet PoE LAN ports for PoE-enabled connectivity
• 2 x SIM slots for plug-and-play connectivity with failover
• No set up required, simply plug it in and your network is ready to go
• Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
• -30 to 70°C operating temperature to resist harsh environments
• Wall or DIN-rail mounting allow for optimal device placement
High Speed 5G NR (Dual SIM w/ Failover)
5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.
Backwards Compatibility
Compatible with 4G/3G networks, ensuring broader coverage and enhanced connectivity.
PoE Connectivity (PSE)
Two GbE LAN PoE ports to connect multiple PD devices for high-throughput mission-critical M2M applications.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices and network from anywhere via the D-ECS management platform.
Specifications:
Device Interface
• Cellular Module: 5G NR/4G LTE 3GPP Rel. 16
• Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
• SIM Slot: 2* SIM (3FF Micro)
• Ethernet: 2*LAN GE, 2*LAN GE with PoE-PSE 802.3at
• Power Input: DC 48-57V (TB)(2-pin)
• Antenna Connector: 4*SMA(F)-Cellular
Performance1
• Maximum Cellular Data Throughput:
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
WAN
• Cellular: NAT
• Network Monitor: ICMP Checking
Network
• DHCP : DHCP Server
• Port Forward: Virtual Server
• DDNS: DynDNS, No-IP, Dynamic DO
• Routing: Static route, Routing information
• PoE: Power Control, ON/OFF by Network checking, Scheduled ON/OFF
• IPv4/v6
VPN
• VPN Tunnel: OpenVPN, WireGuard
• VPN Usage : Client mode
Security
• Firewall: IPS, Block WAN Ping
• Access Control: Packet Filter, MAC Control
Administration
• Configuration: Web UI, Command Script, SSH
• Management: D-Link D-ECS2
• System: FW Upgrade, Reboot & Reset, System Time, NTP Service, System Log
• Scheduling: reboot rule policy, working day
• SMS Service: SMS Inbox, SMS Event Management
• Cellular Data Capacity: Warning ratio to send SMS
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: Cellular Modem Information/Status, Cellular Network Status,
Cellular Signal Quality, Data Usage
• Client: Client List
• Security: VPN Status
Standard Package:
• 4* Cellular SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* DIN-Rail kit
