Product Description

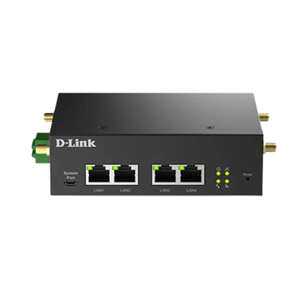

5G Multi-Connect Modem SKU
DWM-314-G
• 5G speeds of up to 3.4 Gbps1 for ultra-fast internet access and data transfer
• 4 x 10/100/1000 Ethernet LAN ports for high-speed connectivity
• 2 x SIM slots for plug-and-play dual-WAN connectivity with failover
• No set up required, simply plug it in and your network is ready to go
• Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
• -30 to 70°C operating temperature to resist harsh environments
• Wall or DIN-rail mounting allow for optimal device placement
D-Link’s DWM-314-G 5G Multi-Connect Modem provides 5G-NR and 4G-LTE dual-mode connectivity.
It also features four Gigabit Ethernet ports for connectivity extension to meet M2M application
requirements.
Unleash 5G Power for Superior M2M Connectivity
The DWM-314-G 5G Multi-Connect Modem harnesses 5G technology to accelerate ultra-fast speed,
reduce latency, and ensure reliable connectivity with its automatic failover feature, enhancing machine-tomachine communication. Ideal for smart parking poles, kiosks and ATMs, this modem supports real-time
data transfer and remote management. Built-in 4-port Gigabit Ethernet simplify setup and reduce the
extra power supply wires and the need for additional switch, making it perfect for space-constrained
environments and cost saving. Additionally, secure VPN capabilities safeguard data transmission, ensuring
robust security for all connected devices.
Plug & Play for Easy Installation
Designed for instant setup, the DWM-314-G 5G modem offers real-time remote access and uninterrupted
connectivity over long distances. Equipped with dual SIM slots and simply insert two Micro-SIM cards (3FF)
for a reliable connection to the high-speed 5G network with seamless 4G/5G switching and for failover
redundancy, even if one carrier network is down. Convenient wall and DIN-rail mounting options allow the
DWM-314-G to be mounted virtually anywhere. This plug-and-play modem is perfect for small-scale
deployments, ensuring robust service even in challenging environments.
Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosionresistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that
the DWM-314-G is ready for the most demanding M2M applications in virtually any environment.
Specifications:
Device Interface
• Cellular Module: 5G/4G 3GPP Rel. 16
• Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
• SIM Slot: 2* SIM (3FF Micro)
• Ethernet: 4*LAN GE
• Power Input: DC 9-36V (TB)(2-pin)
• Antenna Connector: 4*SMA(F)-Cellular
Performance1
• Maximum Cellular Data Throughput:
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
WAN
• Cellular: NAT
• Network Monitor: ICMP Checking
Network
• DHCP : DHCP Server
• Port Forward: Virtual Server
• DDNS: DynDNS, No-IP, Dynamic DO
• Routing: Static route, Routing information
• IPv4/v6
Security
• VPN Tunnel: OpenVPN, WireGuard
• VPN Usage: Client mode
Firewall
• Firewall: IPS, Block WAN Ping
• Access Control: Packet Filter, MAC Control
Administration
• Configuration: Web UI, Command Script, SSH
• Management: D-Link D-ECS2
• System: FW Upgrade, Reboot & Reset, System Time, NTP Service, System Log
• Scheduling: reboot rule policy, working day
• SMS Service: SMS Inbox, SMS Event Management
• Cellular Data Capacity: Warning ratio to send SMS
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: Cellular Modem Information/Status, Cellular Network Status,
Cellular Signal Quality, Data Usage
• Client: Client List
• Security: VPN Status
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 131 x 99 x 40 mm
• 4* Cellular SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* DIN-Rail kit
