Product Description

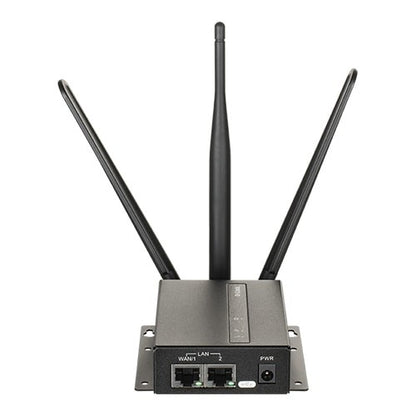

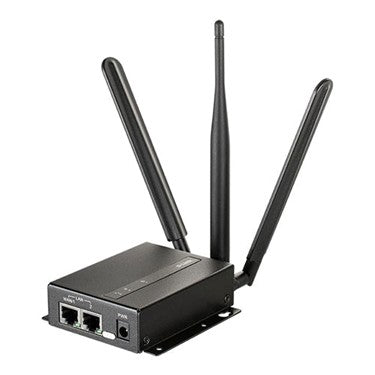

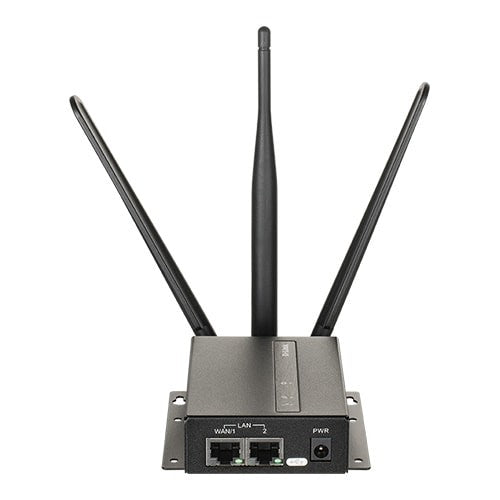

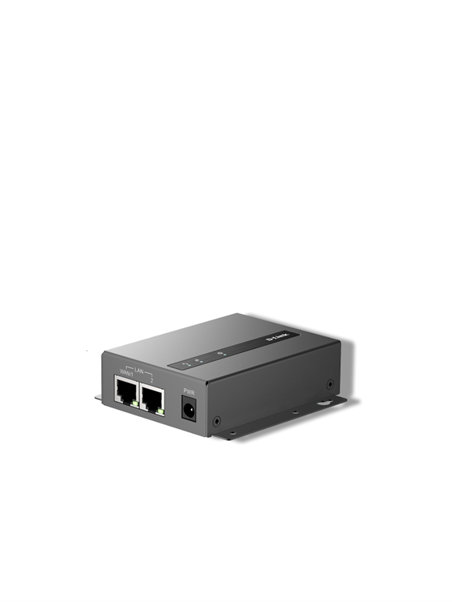

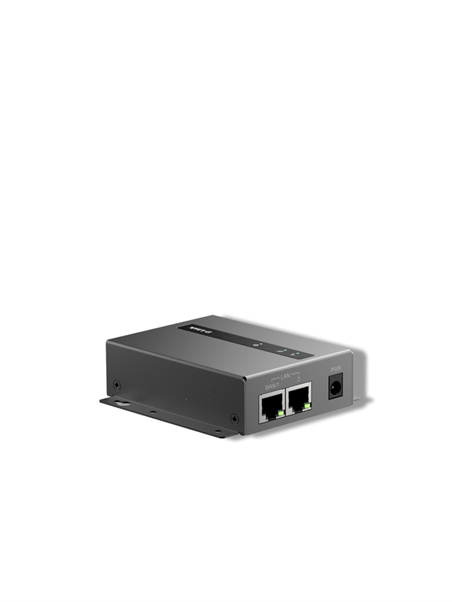

4G M2M Router
DWM-313
4G LTE speeds of up to 150 Mbps1 for fast Internet access and data transfer
Wi-Fi speeds of up to 150 Mbps1 to connect multiple Wi-Fi devices
1 x Micro SD card slot is specifically designed for data log storage
1 x Fast Ethernet WAN/LAN port configurable as wired WAN access
1 x Fast Ethernet LAN port for reliable wired connectivity
2 x SIM slots for cellular WAN failover redundancy
No set up required, simply plug it in and your network is ready to go
Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
-30 to 70°C operating temperature to resist harsh environments
Wall mounting and DIN-rail allow for optimal device placement
1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
Highspeed 4G Internet
Blazing fast 4G/3G LTE download speeds of up to 150 Mbps1
Wired and wireless connectivity for broad compatibility
Offers maximum flexibility for your Machine-to-Machine (M2M) applications with wireless and wired connectivity.
Dual-SIM slot for always-on Internet
Configurable dual-SIM fallback provides connectivity that you can count on, even if one operator's network goes down
Advanced VPN
Integrated VPN client and server with support for IPSec, PPTP, L2TPv2, GRE, and OpenVPN tunneling
Easy management
Local and remote access through web/Telnet/SSH and SNMP support. TR-069 and D-ECS management platform available for projects.
Rapid deployment anywhere
The wall-mount for easy installation anywhere, small form factor, SNMP management support, Zinc-plated steel case, wide operating temperature and humidity tolerance
Specifications:
Device Interface
• Cellular Module: 4G LTE-Cat.4

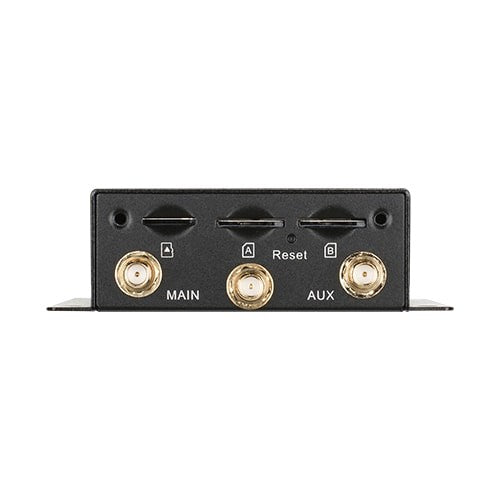

• SIM Slot: 2*SIM(Micro SIM)

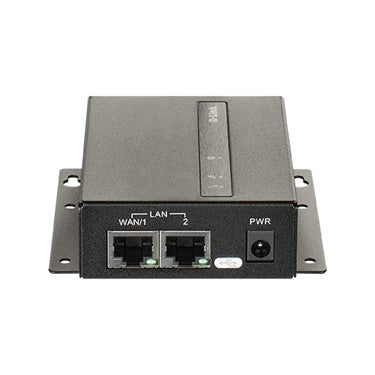

• Ethernet: 1*WAN/LAN FE, 1*LAN FE
• WiFi: WiFi N150(2.4GHz)
• Micro SD Slot: 1*Micro SD for log.
• Power Input: DC 5V (DC Jack)

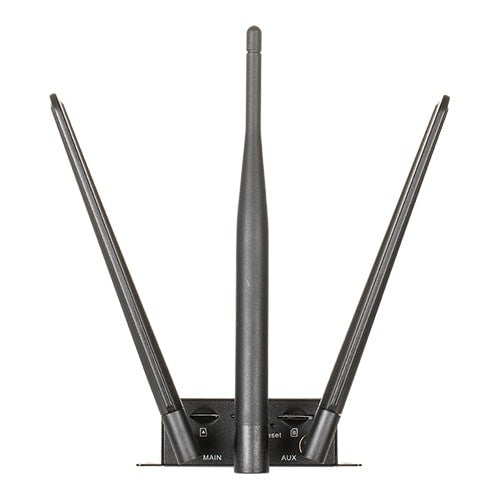

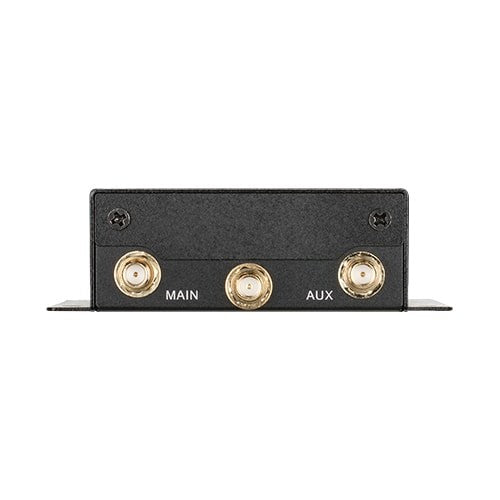

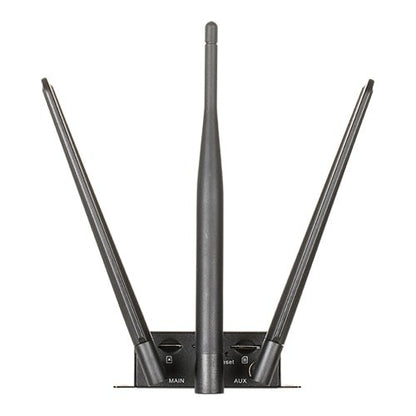

• Antenna Connector: 2*SMA(F)-Cellular, 1*SMA(RP-F)-WiFi
Performance1
• Maximum Cellular Data Throughput:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
WAN
• Multi-WAN: Cellular, Ether-WAN, Failover
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Network Monitor: ICMP Check/DNS Query
Network
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: DMZ, Virtual Server & Computer, VPN Pass-through
• Routing: Static, Dynamic RIPv1/v2, OSPF
• DDNS: DynDNS, No-IP, Dynamic DO
• IGMP, IPv4/v6
Wi-Fi
• Standard: IEEE 802.11 n/b/g
• Modes: AP Router
• Function: Multi SSID, WMM
• Security: WEP,WPA,WPA2,WPA-PSK,WPA2-PSK, 802.1x
• 2.4GHz Data Rate: 150 Mbps
Service
• Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan
• Event Handling: Event Management, Notifying Events
External Server
Ext. Server: Email, Syslog Server
VPN
• VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE
• IPsec Scenario: Site/Host to Site/host
Security
• Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
• Access Control: Packet Filter, URL Blocking, MAC Control
Administration
• Configuration: Web UI, CLI, Command Script
• Management: SNMPv1/2/3, D-Link D-ECS2
• System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log, NTP
Service
• Diagnostic: Diagnostic Tools, Packet Analyzer
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: WAN & LAN Interface Network Status, Cellular Modem Status
• Security: VPN Status, Firewall Status
• Statistics&Reports: Connection Session, Login Statistics, Cellular Usage, Cellular Signal
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 93 x 90 x 27mm
Standard Package
• 2* Cellular SMA Antennas
• 1* WiFi RP-SMA Antenna
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* DIN-Rail kit
