Product Description

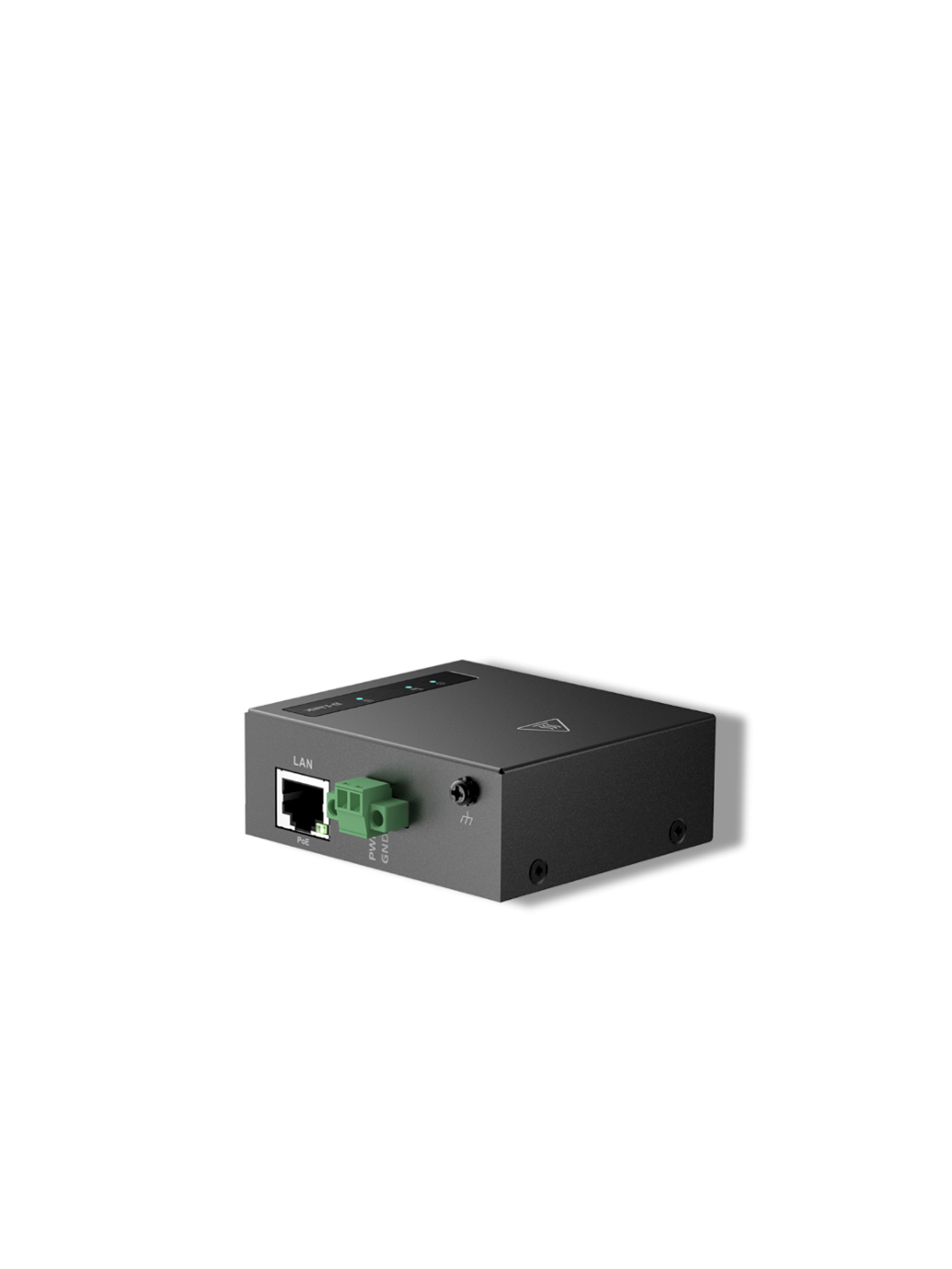

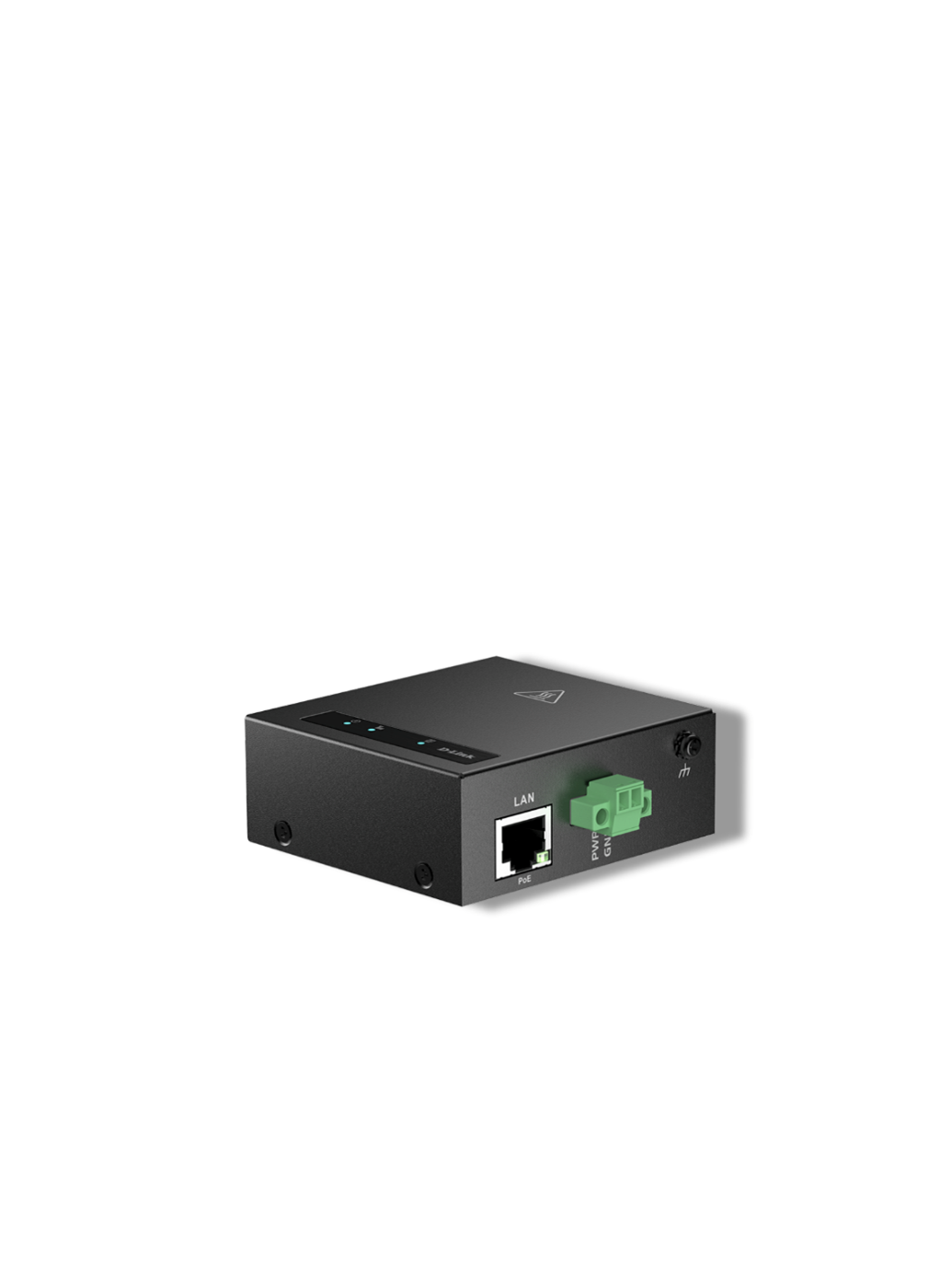

4G M2M PoE Modem
DWM-311-TP
- Transfer speeds of up to 150 Mbps1 for fast internet access and data transfer
- 1 x 10/100 Fast Ethernet PoE LAN port for PoE-enabled connectivity
- 1 x SIM slot for plug-and-play WAN connectivity
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- DIN-rail mounting allows for optimal device placement
Plug & Play
Simplifies setup, enhances security, and ensures reliable performance for critical applications.
PoE Connectivity (PSE)
Fast Ethernet PoE LAN port to deliver both data and power to a PD device for M2M various application.
SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
D-Link's DWM-311-TP 4G M2M PoE modem provides 4G-LTE cellular capability. Equipped with a Fast
Ethernet port and supporting 802.3af/at PoE, this modem ensures rapid and reliable connection to
any local device, providing both power and data over a single cable for streamlined deployment.
Specifications
Device Interface
• Cellular Module: 4G LTE-Cat.4
• SIM Slot: 1*SIM(4FF Nano)
• Ethernet: 1*RJ45 LAN FE with PoE-PSE 802.3at
• Power Input: DC 48-57V (TB)(2-pin)
• Antenna Connector: 2*SMA(F)-Cellular
Performance1
• Maximum Cellular Data Throughput:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
WAN
• Cellular: NAT, Bridge
• Network Monitor: ICMP Checking
Network
• DHCP : DHCP Server
• Port Forward: Virtual Server
• DDNS: DynDNS, No-IP, Dynamic DO
• PoE: Power Control, ON/OFF by Network checking, Scheduled ON/OFF
• IPv4/v6
Security
• VPN Tunnel: OpenVPN
• VPN Usage: Client mode
Firewall
• Firewall: IPS
• Access Control: Packet Filter, MAC Filter
Administration
• Configuration: Web UI, SSH
• Management: D-Link D-ECS2
• System: FW Upgrade, Reboot & Reset, System Time, NTP Service
• Scheduling: reboot rule policy, working day
• SMS Service: SMS Inbox, SMS Event Management
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: Cellular Modem Information/Status, Cellular Network Status,
Cellular Signal Quality
• Security: VPN Status
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 78 x 70 x 29 mm
Standard Package
• 2* Cellular SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* DIN-Rail kit
