Product Description

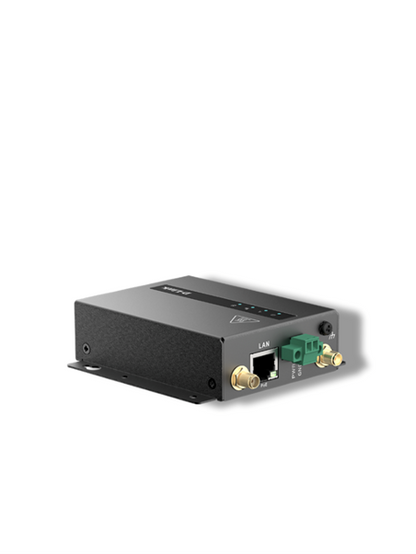

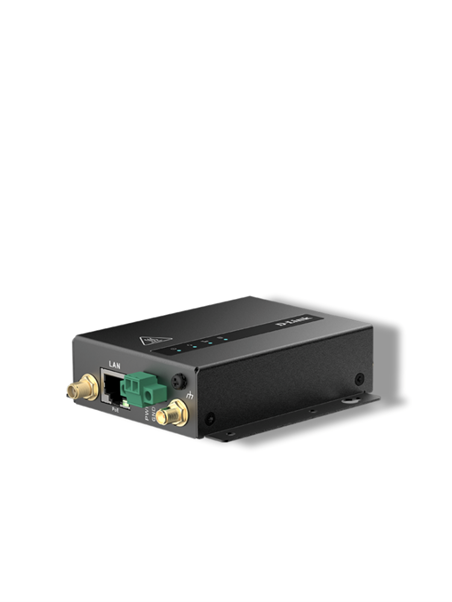

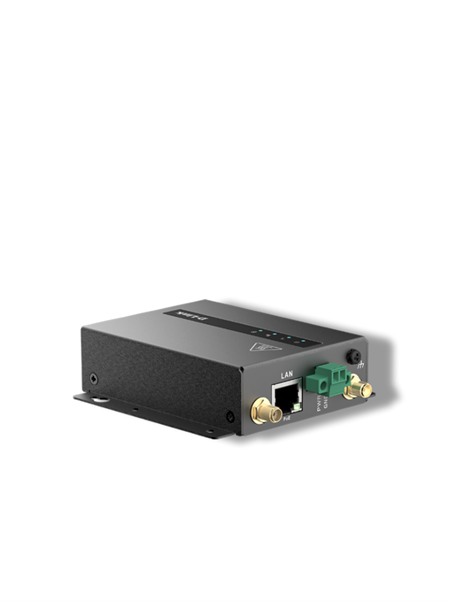

5G M2M PoE Modem
DWM-311-GP
- 5G speeds of up to 3.4 Gbps1 for ultra-fast internet access and data transfer
- 1 x 10/100/1000/2500 Ethernet PoE LAN port for high-speed PoE-enabled connectivity
- 2 x SIM slots for plug-and-play dual-mode WAN connectivity with failover
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
High Speed 5G NR (Dual SIM w/ Failover)
5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.
2.5 GbE PoE Port (PSE)
2.5 GbE PoE LAN port to connect PD device for high-throughput mission-critical M2M applications.
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Specifications:
Device Interface
• Cellular Module: 5G/4G 3GPP Rel. 16
• Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
• SIM Slot: 2* SIM (4FF Nano SIM)
• Ethernet: 1*RJ45 LAN 2.5GE with PoE-PSE 802.3at
• Power Input: DC 48-57V (TB)(2-pin)
• Antenna Connector: 4*SMA(F)-Cellular
Performance1
• Maximum Cellular Data Throughput:
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
WAN
• Cellular: NAT, Bridge
• Network Monitor: ICMP Checking
Network
• DHCP : DHCP Server
• Port Forward: Virtual Server
• DDNS: DynDNS, No-IP, Dynamic DO
• Routing: Static route, Routing information
• PoE: Power Control, ON/OFF by Network checking, Scheduled ON/OFF
• IPv4/v6
Security
• VPN Tunnel: OpenVPN, WireGuard
• VPN Usage: Client mode
Firewall
• Firewall: IPS
• Access Control: Packet Filter, URL Blocking, MAC Filter
Administration
• Configuration: Web UI, SSH
• Management: D-Link D-ECS2
• System: FW Upgrade, Reboot & Reset, System Time, NTP Service
• Scheduling: reboot rule policy, working day
• SMS Service: SMS Inbox, SMS Event Management
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: Cellular Modem Information/Status, Cellular Network Status,
Cellular Signal Quality
• Client: Client List
• Security: VPN Status
Standard Packaging:
• 4* Cellular SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* DIN-Rail kit
