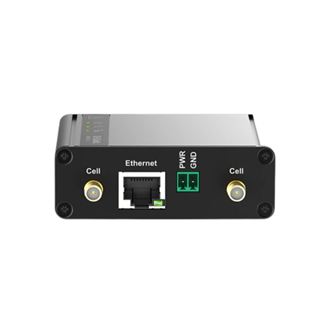

DWM-311-G
5G LTE M2M VPN Modem
• 5G speeds of up to 3.4 Gbps1 for ultra-fast internet access and data transfer
• 1 x 10/100/1000/2500 Ethernet LAN port for high-speed wired connectivity
• 1 x SIM slot for plug-and-play WAN connectivity
• No set up required, simply plug it in and your network is ready to go
• Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
• -30 to 70°C operating temperature to resist harsh environments
• Wall or DIN-rail mounting allow for optimal device placement
Technical Specifications
General
Device Interfaces • 1 x 2.5 Gb Ethernet LAN port to connect wired
devices for high-speed transmission
• 1 x 3FF micro-SIM slot
Antenna Types 4 x Cellular external antennas
Cellular Data Signal Rates1 • 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
• 5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
• LTE FDD: 1.6 Gbps (DL) / 200 Mbps (UL)
• WCDMA: 42 Mbps (DL) / 5.76 Mbps (UL)
Cellular
Standards 5G NR Sub-6 GHz
Operating Bands2
• 5G NR: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/ 41/48/66/70/71/75/76/77/78/79
• LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/ 29/30/32/66/71
• LTE-TDD: B34/38/39/40/41/42/43/48
• LAA: B46
• WCDMA: B1/2/4/5/8/19
WAN
Network Monitor ICMP checking
SMS Send/read/forward/store/delete
Network
Operation Modes • Modem mode • NAT mode
DHCP DHCP server
IPv6 Cellular IPv6
Routing • Static routing • Routing info
Dynamic DNS Supported
Firewall / Security
Firewall SPI firewall with stealth mode
Port Forwarding Virtual Server
IPS • Flooding defense • Block Ping of Death (PoD) attacks
Access Control • Packet filter
• URL blocking
• MAC filter
VPN
OpenVPN Client mode
WireGuard Client mode
Administration
Configuration • Web UI • Command script
Management • Telnet
• SSH
• D-Link D-ECS3
System • Config backup/restore
• Reboot/reset
• NTP
• Syslog
Physical / Environment
Dimensions 77.4 x 68.5 x 26 mm
Weight 172 g
Power Adapter DC 12 V / 1A
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
Certification
• FCC
• PTCRB
• AT&T
• Verizon
• RoHS
