Product Description

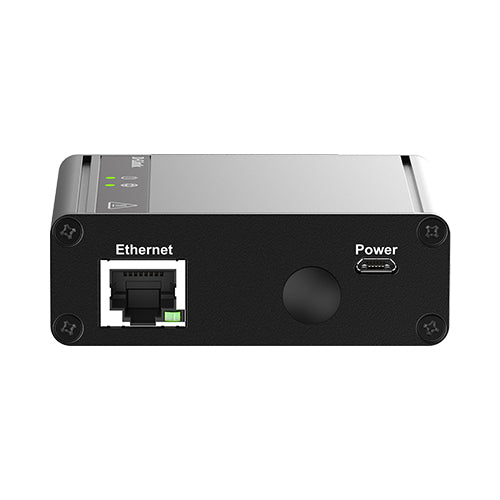

DWM-311
4G M2M Modem DWM-311
• 4G LTE speeds of up to 150 Mbps1 for fast internet access and data transfer
• 1 x 10/100/1000 Ethernet LAN port for reliable wired connectivity
• 1 x SIM slot for plug-and-play WAN connectivity
• No set up required, simply plug it in and your network is ready to go
• Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
• -30 to 70°C operating temperature to resist harsh environments
• Wall or DIN-rail mounting allow for optimal device placement
Mobile Network Support2
• ( SKU 1 (EU) : LTE FDD Bands 1/3/7/8/20/28A, LTE TDD Bands 38/40/41, UMTS/HSPA B1/B8, 900/2100 MHz ), ( SKU 2 (AF) : LTE FDD Bands B2/B4/B5/B12/B13/B14/B66, UMTS/HSPA B2/B4/B5, 850/1700/1900 MHz )
Maximum Cellular Data Throughput1
• LTE FDD: 150 Mbps (DL) / 50 Mbps (UL), LTE TDD: 130 Mbps (DL) / 30 Mbps (UL), DC-HSDPA/HSUPA: 42 Mbps (DL) / 5.76 Mbps (UL), WCDMA: 384 Kbps (DL ) / 384 Kbps (UL), EDGE: 296 Kbps (DL) /236.8 Kbps (UL), GPRS: 107 Kbps (DL) / 85.6 Kbps (UL)
Device Interfaces
• 1 x 10/100/1000 Ethernet LAN port, 1 x Micro-USB port (power input), 2 x SMA for LTE (antenna connectors), 1 x Sim slot (Micro-3FF)
Standards
• IEEE 802.3i, IEEE 802.3u
VPN
• OpenVPN (1 tunnel)
Advanced Features
• D-ECS remote device management3, Web-based UI, SMS reboot function
LED Status Indicators
• Network Connectivity, Power
Power
• Input: Power Adapter 5V/2A via Micro USB
Enclosure
• Aluminum and zinc-plated steel
Dimensions
• 77.4 x 68.5 x 26 mm (3.05 x 2.7 x 1.02 in)
Weight
• 145 g (5.12 oz)
Temperature
• Operating: -30 to 60 ˚C (-22 to 140 ˚F), Storage : -40 to 85 ˚C (-40 to 185 ˚F)
Humidity
• Operating: 10% to 85% non-condensing
Certifications
• CE, FCC, PTCRB, AT&T, Verizon
DWM-311
• 4G LTE Modem
1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
2. Supported frequency band is dependent upon hardware SKU.
3. D-ECS (D-Link Edge Cloud Solution) - License fees will apply.
