Product Description
5G Transit Gateway
- 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
- 4 x Gb Ethernet Ports(M12 X-Code)
- Wi-Fi 6 AX1800 to connect multiple on-board devices
- 1 x RS-232 (M12 A-coded)
- 1 x USB port for device log information
- GNSS for GPS/GLONASS
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Power Input: DC 18-75V (M12 A-coded), or through PoE (Eth4) (X-coded)

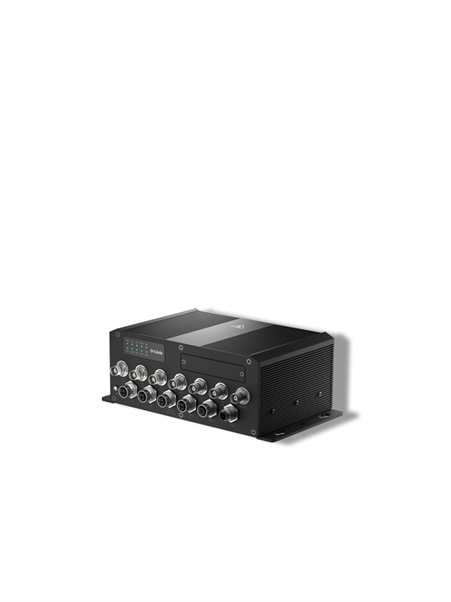

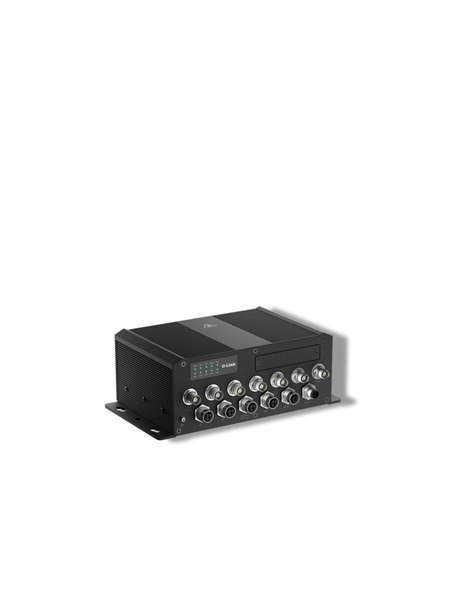

D-Link’s DTM-570-GS 5G Transit Gateway provides robust 5G NR and LTE cellular connectivity for wireless uplink and downlink, featuring four Gigabit Ethernet M12/X-coded ports to connect local devices. This solution seamlessly integrates service providers, passengers, vehicles, and ground systems into a unified network. With high-speed, high-capacity Wi-Fi 6 AX1800 wireless connectivity, it facilitates real-time travel data exchange. By integrating advanced networking technologies, the DTM-570-GS helps create a smarter, more convenient, and efficient transportation service. Built on the principles of personal mobility and freedom, it enhances passenger flow and effectively reduces traffic congestion.
Enhanced Onboard Telematics and Infotainment
The DTM-570-GS 5G Transit Gateway empowers rail transport with advanced connectivity, linking onboard RS232 and Ethernet devices to the Internet via a robust 5G network. This setup not only facilitates realtime monitoring for passenger safety through surveillance systems but also ensures seamless operation of railway onboard systems. Additionally, it delivers precise station arrival notifications on the digital signage, enhancing the rail passenger experience.
Optimize Railway Operations with Location-Based Services
The DTM-570-GS enhances railway operations with precise GPS location positioning, enabling effective real-time asset utilization. This gateway supports operators by offering detailed insights into the location and mileage of trains, facilitating optimal routing services that assure punctuality and enhance efficiency through timely service.
Robust Design for Rail Application
The DTM-570-GS 5G Transit Gateway is engineered to withstand the rigors of rolling stock environments, meeting mandatory requirements of EN45545, EN50155, and EN50121-3-2 rail-related standards. Its robust design includes industrial-rated M12 connectors, a corrosion-resistant zinc-plated steel casing, and wide voltage input range. This ensures reliable and stable M2M connectivity, even under extreme conditions of movement, temperature, and humidity, making it ideal for demanding rail applications where
reliable performance is critical.
Applications
• Passenger Wi-Fi Hotspot (Bus, Rolling
Stock/High Speed rail, Tram)
• In-Vehicle Network for RS-232 and Wi-Fi
devices
• GPS location for fleet management
Specifications:
Device Interface
• Cellular Module: 5G/4G 3GPP Rel. 16
• Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
• SIM Slot: 2*SIM(Mini SIM)
• Ethernet: 1*WAN/LAN GE(M12)(X-Coded), 3*LAN GE(M12)(X-Coded)
• RS-232: 1 x RS-232(M12)(A-coded)
• USB Port: 1 x USB port for log.
• WiFi: WiFi6 AX1800(2.4G/5GHz)
• GNSS: GPS/GLONASS
• Power Input: DC 18-75V (M12)(A-Coded), or through PoE (Eth4) (X-coded)
• Antenna Connector: 4*TNC-Cellular, 2*TNC-WiFi, 1*TNC-GPS
Performance1
• Maximum Cellular Data Throughput:
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
WAN
• Multi-WAN: Cellular, Ether-WAN, Failover
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE
• Network Monitor: ICMP Check/DNS Query
Network
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: NAT Loopback, Special AP&ALG, DMZ, Virtual Server & Computer, VPN
Pass-through
• Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
• DDNS: DynDNS, No-IP, Dynamic DO
• QoS: Rule for Service (DSCP, TOS, Well-known Service)
• IGMP, IPv4/v6
Wi-Fi
• Standard: IEEE 802.11 ax/ac/n/g/b/a/h
• Modes: AP Router
• Function: Multi SSID, Auto Channel Selection, Station Isolation
• Security: WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES,TKIP/AES), WPA/WPA2,
WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x
• Advanced Function: WIDS, Wi-Fi 5G Band Steering
• 2.4GHz Data Rate: 574 Mbps
• 5GHz Data Rate: 1201 Mbps
Service
• Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan
• Device Location: GPS or GPS+ GLONASS
VPN
• VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard
• IPsec Scenario: Site/Host to Site/host; Dynamic VPN
Security
• Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
• Access Control: Packet Filter, URL Blocking, MAC Control
Administration
• Configuration: Web UI, CLI, Command Script
• Management: SNMPv1/2/3, D-Link D-ECS2
, RESTful API
• System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log, NTP Service
• FTP: FTP, SFTP
• Diagnostic: Diagnostic Tools, Ethernet Port Setup
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: WAN & LAN Interface Network Status, Cellular Modem Status
• Security: VPN Status, Firewall Status
• Statistics&Reports: Connection Session, Login Statistics, Cellular Usage, Cellular Signal
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 207.4 x 135 x 86 mm
Optional Package
• 4* Cellular Antennas
• 2* Wi-Fi Antennas
• 1* GPS Antennas
• 5* Cellular/GPS Convertor: TNC to SMA
• 2* Wi-Fi Convertor: TNC to RP-SMA
• 4* RJ-45 Cable: M12(X-Coded) to RJ-45
• 1* RS-232 Cable: M12 (A-coded, 5-pin) to RS-232
• 1* Power Connector: M12(
