Product Description
- 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
- Wi-Fi 5 AC1200 to connect multiple on-board devices
- 3 x Gigabit Ethernet ports
- 2 x Digital Input and 2 x Digital Output
- 1 x (RS-232 or RS-485) Serial Port
- 1 x USB 2.0 and Micro SD slot for device log information
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wide Voltage Range Input: DC 9-36V

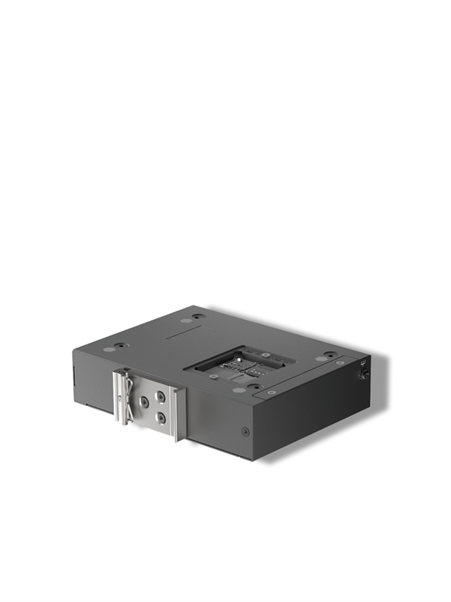

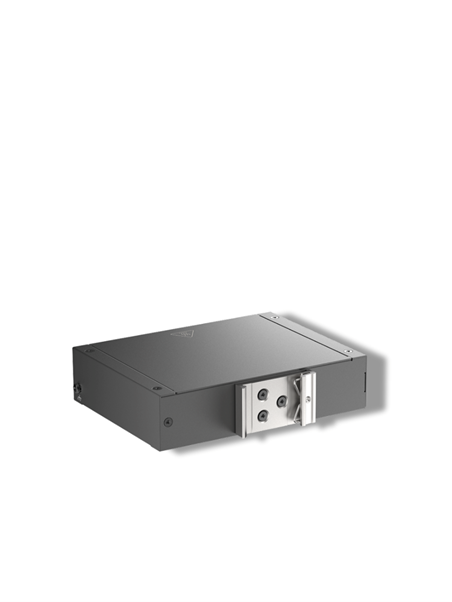

- DIN-rail mounting allows for optimal device placement

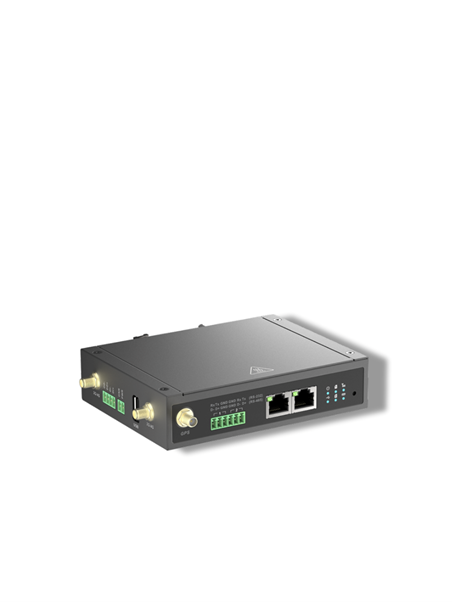

D-Link's DOM-550-GSO 5G IIoT Gateway provides 5G-NR and 4G-LTE dual-mode connectivity, achieving download speeds of up to 3.4 Gbps. It is equipped with three Gigabit Ethernet ports, one of which can be configured as an Ethernet WAN. This allows easy switching between broadband and 4G/5G. Additionally, it features Wi-Fi 5 AC1200 connectivity, making it suitable for a wide range of IIoT applications. The device also includes versatile IO options: 1x RS232/485 port, 2x digital inputs, 2x digital outputs, and 2x analog inputs, as well as USB 2.0 and SD-Card slots for expanded functionality , making it suitable for a wide range of IT/OT applications.
Optimize Operations with IT/OT Integration
Leverage the DOM-550-GSO 5G IIoT Gateway to merge business operations with production processes, offering benefits like enhanced decision-making, improved process automation, and increased output. It harnesses powerful 5G connectivity for swift integration with remote sensors, devices, and machinery, providing substantial competitive advantages. Featuring versatile interface compatibility, including RS-232/485 and Digital I/O, the DOM-550-GSO responds dynamically when IoT sensors meet specified criteria, enhancing automation and responsiveness in industrial settings. This boosts operational efficiency and streamlines complex industrial tasks, making it an essential tool for modernizing and optimizing industrial operations.
Advanced Event Management for Efficient IIoT Operations
The DOM-550-GSO 5G IIoT Gateway significantly streamlines event management by responsive eventtrigger capabilities. It is engineered to provide immediate notifications through SMS or email when IIoT sensor readings exceed pre-set thresholds, allowing the control center to monitor and control IIoT sensor status remotely via SMS. This feature enhances the efficiency of IIoT monitoring, automation, and timesensitive applications.
Revolutionize Connectivity for Industrial Automation with 5G Technology
Harness the transformative power of the DOM-550-GSO 5G IIoT Gateway to redefine business operations and reshape industries. This gateway offers revolutionary connectivity with high-speed, real-time data exchange across all connected devices, utilizing 5G’s low latency to ensure responsive, reliable automation processes that minimize errors and downtime, and maximize production efficiency. With its multi-interface compatibility, including RS-232/485 and digital I/O (DI/DO), the DOM-550-GSO drives advanced 5G technology deep into operational technology (OT) networks. It seamlessly converts
data between Modbus RTU/ASCII and TCP protocols, facilitating easy configuration, troubleshooting, and network integration.
Applications
• Factory Automation
• Solar Power Station
• Environment Monitoring
• Power Plant
• Traffic Light
• Street Light
• Elevator
• Gas Station
Specifications:
Device Interface
• Cellular Module: 5G/4G 3GPP Rel. 16
• Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
• SIM Slot: 2*SIM(Micro SIM)
• Ethernet: 1*WAN/LAN GE, 2*LAN GE
• Wi-Fi: WiFi5 AC1200(2.4G/5GHz)
• Serial Port: 1* (RS-232 or RS-485)(TB)
• Digital I/O:
2*DI(Isolated, “Logic 0”: 0~2V, “Logic 1”: 5V~30V),
2*DO(Isolated, Non-Relayed Output, 24V/300mA for each port) (TB)
2*AI (0~10V, 12bit ADC, sampling rate up to 125KHz)
• Micro SD Slot: 1*Micro SD for log.
• USB Port: 1* USB 2.0 Type A port for log.
• Power Input: DC 9-36V (TB)
• Antenna Connector: 4*SMA(F)-Cellular, 2*SMA(RP-F)-WiFi,
Performance1
• Maximum Cellular Data Throughput:
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
WAN
• Multi-WAN: Cellular, Ether-WAN, Failover, Load Balance
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE
• Network Monitor: ICMP Check/DNS Query
Network
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: NAT Loopback, DMZ, Virtual Server & Computer, VPN Pass-through
• Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
• DDNS: DynDNS, No-IP, Dynamic DO
• QoS: Rule for Service (DSCP, TOS, Well-known Service)
• IGMP, IPv4/v6
Wi-Fi
• Standard: IEEE 802.11 ac/n/g/b/a
• Modes: AP Router
• Function: Multi SSID, Auto Channel Selection, Station Isolation
• Security: WPA/WAP2, WPA2, WPA2-PSK(AES), WPA-PSK/WPA2-PSK(AES, TKIP/AES),
802.1x
• Advanced Function: WIDS, Wi-Fi 5G Band Steering
• 2.4GHz Data Rate: 300 Mbps
• 5GHz Data Rate: 866 Mbps
Service
• Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan
• Event Handling: Event Management, Notifying Events
External Server
Ext. Server: Email, Syslog Server
VPN
• VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard
• IPsec Scenario: Site/Host to Site/host; Dynamic VPN
Security
• Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
• Access Control: Packet Filter, MAC Control, URL Blocking
Administration
• Configuration: Web UI, CLI, Command Script
• Management: SNMPv1/2/3, D-Link D-ECS2
• System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log, NTP
Service
• FTP: FTP, SFTP
• Diagnostic: Diagnostic Tools, Packet Analyzer
Field Communication
• Virtual COM: TCP Client, TCP Server, UDP
• Modbus: Modbus TCP/RTU/ASCII Master/Slave Access;
• Data Logging: Modbus Proxy Rule, Scheme Configuration for Sniffer/Off-Line Proxy/Full-Time Proxy/Sniffer&Off-Line Proxy/Sniffer&Full-Time Proxy.
Status
• Dashboard: System Information
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: WAN & LAN Interface Network Status, Cellular Modem Status
• Security: VPN Status, Firewall Status
• Statistics&Reports: Connection Session, Login Statistics, Cellular Usage, Cellular Signal
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
Standard Package
• Dimensions: 62 x 125 x 160 mm
• 4* Cellular SMA Antennas
• 2* Wi-Fi RP-SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* Terminal Block (4-pin)
• 1* Terminal Block (10-pin)
• 1* DIN-Rail kit
