Product Description

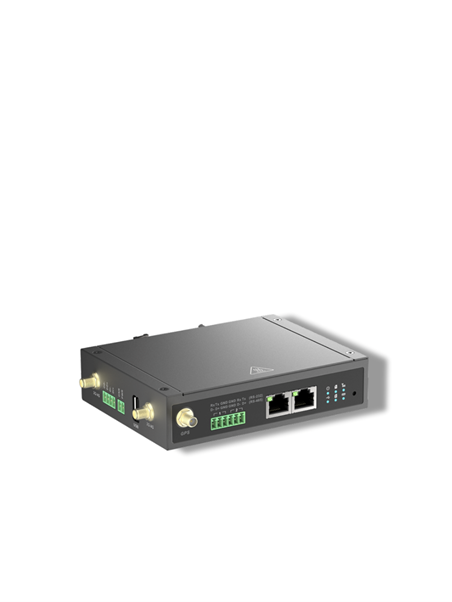

4G IIoT Gateway
DOM-530-TSO
4G with dual SIM slots for cellular WAN failover redundancy
2 x Gigabit Ethernet ports
1 x Digital Input
1 x Digital Output
2 x (RS-232 or RS-485) Serial port
1 x USB 2.0 and Micro SD slot for device log information
Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
-30 to 70°C operating temperature to resist harsh environments
Wide Voltage Range Input: DC 9-36V

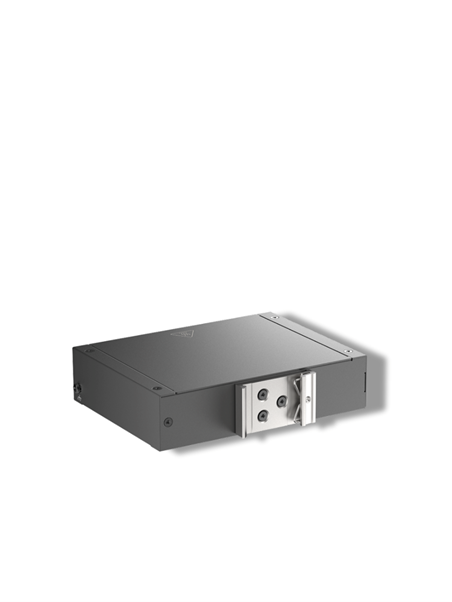

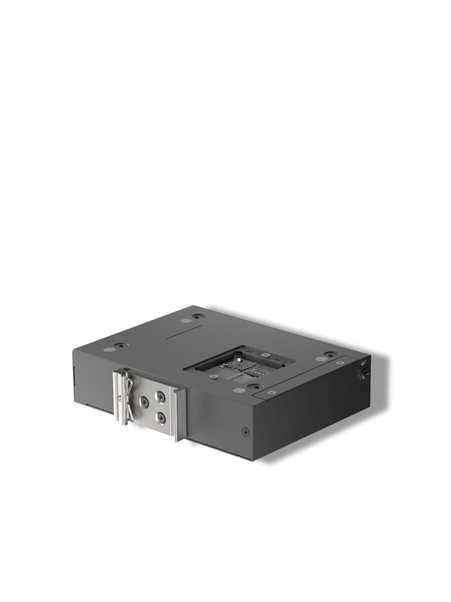

DIN-rail mounting allows for optimal device placement
Specifications:
Device Interface
• Cellular Module: 4G LTE-Cat.4
• SIM Slot: 2*SIM(Micro SIM)
• Ethernet: 1*WAN/LAN GE, 1*LAN GE
• Serial Port: 2* (RS-232 or RS-485)(TB)
• Digital I/O:
1* DI(Isolated, “Logic 0”: 0~2V, “Logic 1”: 5V~30V),
1*DO(Relay Mode, Max. 30V) (TB)
• Micro SD Slot: 1*Micro SD for log.
• USB Port: 1* USB 2.0 Type A port for log.
• GNSS: GPS/GLONASS
• Power Input: DC 9-36V (TB)
• Antenna Connector: 2*SMA(F)-Cellular, 1*SMA(F)-GPS
Performance1
• Maximum Cellular Data Throughput:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
WAN
• Mult-WAN: Cellular, Ether-WAN, WAN Failover
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Network Monitor: ICMP Check/DNS Query
Network
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: NAT Loopback, DMZ, Virtual Server & Computer, VPN Passthrough
• Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
• DDNS: DynDNS, No-IP, Dynamic DO
• IGMP, IPv4/v6
External Server
• Ext. Server: Email, Syslog, FTP Server
Service
• Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan
• Event Handling: Event Management, Notifying Events
• Device Location: GPS or GPS+ GLONASS
VPN
• VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE
• IPsec Scenario: Site/Host to Site/host; Dynamic VPN
Security
• Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
• Access Control: Packet Filter, MAC Control
Administration
• Configuration: Web UI, CLI, Command Script
• Management: SNMPv1/2/3, D-Link D-ECS2
• System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log,
NTP Service
• FTP: FTP, SFTP
• Diagnostic: Diagnostic Tools, Packet Analyzer
Field Communication
• Virtual COM: TCP Client, TCP Server, UDP
• Modbus: Modbus TCP/RTU/ASCII Master/Slave Access;
• Data Logging: Modbus Proxy Rule, Scheme Configuration for Sniffer/Off-Line
Proxy/Full-Time Proxy/Sniffer&Off-Line Proxy/Sniffer&Full-Time Proxy.
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 31 x 99 x 131mm
Standard Package:
• 2* Cellular SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (2-pin)
• 1* Terminal Block (4-pin)
• 1* Terminal Block (6-pin)
• 1* DIN-Rail kit
