Product Description

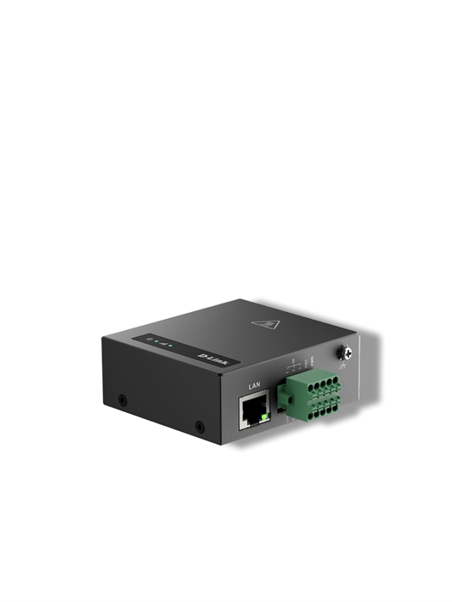

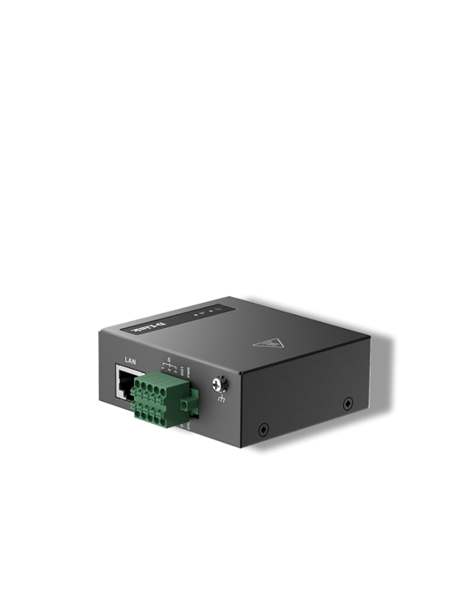

4G IIoT RTU
DOM-311-TSO
4G with one SIM slot for cellular WAN
1 x Fast Ethernet port
3 x Digital Input
2 x Digital Output
1 x (RS-232 or RS-485) Serial port
Supports Modbus TCP/RTU/ASCII Master/Slave Access
Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
-30 to 70°C operating temperature to resist harsh environments
Wide Voltage Range Input: DC 9-36V
DIN-rail mounting allows for optimal device placement
Specifications:
Device Interface
• Cellular Module: 4G LTE-Cat.4
• SIM Slot: 1*SIM(Nano SIM)
• Ethernet: 1*LAN FE
• Serial Port: 1* (RS-232 or RS-485)(TB)
• Digital I/O:
3* DI( “Logic 0”: 0~2V, “Logic 1”: 5V~30V),
2*DO(Open Collector, Max. 30V) (TB)
• Power Input: DC 9-36V (TB)
• Antenna Connector: 2*SMA(F)-Cellular
Performance1
• Maximum Cellular Data Throughput:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
WAN
• Cellular: NAT, Bridge
• Network Monitor: ICMP Check
Network
• DHCP: DHCP Server
• Port Forward: Virtual Server
• Routing: Static
• DDNS: DynDNS, No-IP, Dynamic DO
• IPv4/v6
VPN
• VPN Tunnel: OpenVPN
• VPN Usage: Client mode
Security
• Firewall: IPS, Block WAN Ping
• Access Control: Packet Filter, MAC Control
Administration
• Configuration: Web UI, CLI, Command Script
• Management: D-Link D-ECS2
• System: FW Upgrade, Reboot & Reset, System Time, NTP Service
• Scheduling: reboot rule policy, working day
• SMS Service: SMS Event Management
Field Communication
• Virtual COM: TCP Client, TCP Server, UDP
• Modbus: Modbus TCP/RTU/ASCII Master/Slave Access;
• Data Interchange: Restful API.
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: Cellular Modem Information/Status, Cellular Network Status,
Cellular Signal Quality
• Security: VPN Status
Environment
• OP/Store Temp.:
Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F)
Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)
• Humidity:
Operating Humidity 10% to 95% non-condensing
Storage Humidity 0 to 95% non-condensing
• Dimensions: 78 x 70 x 29mm
Standard Package
• 2* Cellular SMA Antennas
• 1* RJ-45 Cable
• 1* Power Adapter
• 1* Terminal Block (10-pin)
• 1* DIN-Rail kit
