Product Description

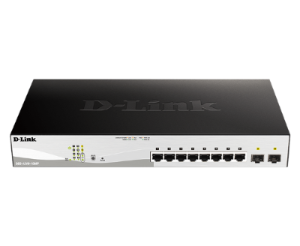

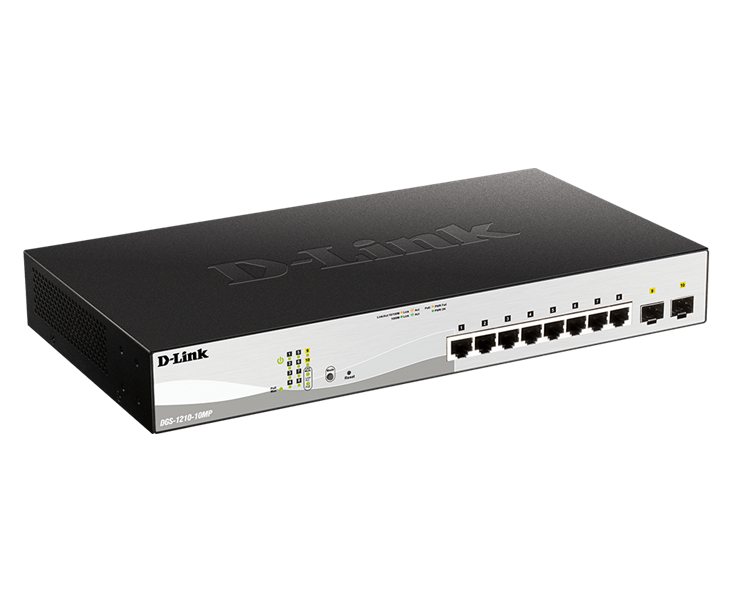

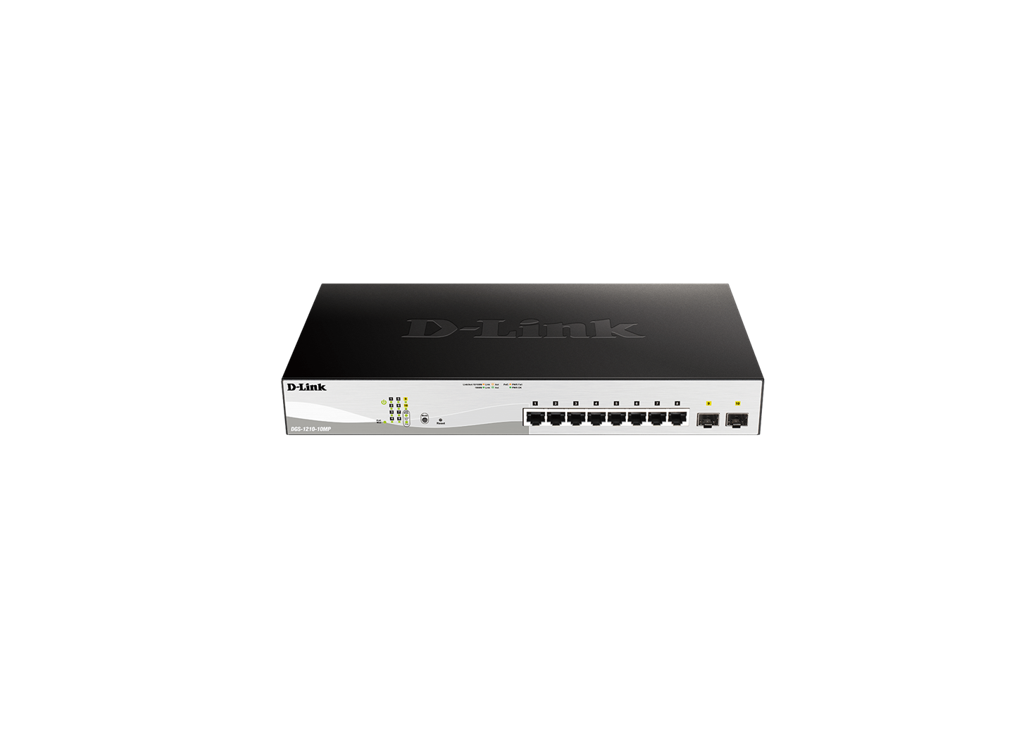

10-Port Gigabit Smart Managed PoE Switch
DGS-1210-10MP
8 x 10/100/1000BASE-T PoE ports
2 x Gigabit SFP ports
Advanced L2 switching and security features
L2+ Static Routing
Optional “standard mode” or “surveillance mode” management user interface
130W PoE budget
Specifications:
Interfaces
8 x 10/100/1000BASE-T PoE ports
2 x SFP ports
Switch Capacity
20 Gbps
Max. Packet Forwarding Rate
14.88 Mpps
Dimensions
330 x 180 x 44 mm
Weight
1.77 kg
Temperature
Operating: -5 to 50° C (23 to 122° F)
Storage -20 - 70°C
Standby Power Consumption
4.3 W/100V
5.2 W/240V
Humidity
Operating: 0% - 95% RH
Storage: 0% - 95% RH
Maximum Heat Dissipation
519.51 BTU/hr (100 V)
507.23 BTU/hr (240 V)
MTBF
1,274,005 hours
Power Input
100 to 240 V AC
CPU Speed
500MHz
DRAM Size
DDR3 128MB
Flash Memory Size
32 MB
Packet Buffer Size
4.1Mbits
FAN
Fanless
PoE Budget
130 W
Operating Altitude
1500 m
Max Power Consumption
152.3 W/100 V, 148.7 W/240 V (PoE on)
8.5 W/100 V, 9.4 W/240 V (PoE off)
Acoustic
0 dB
