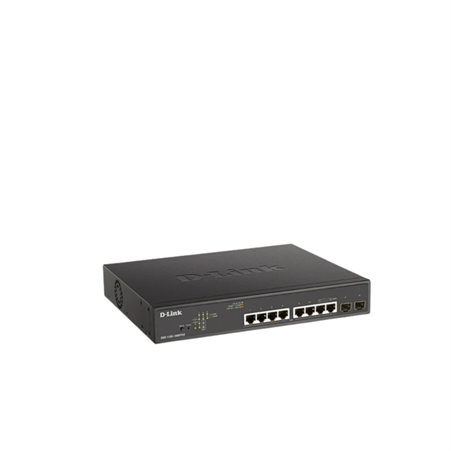

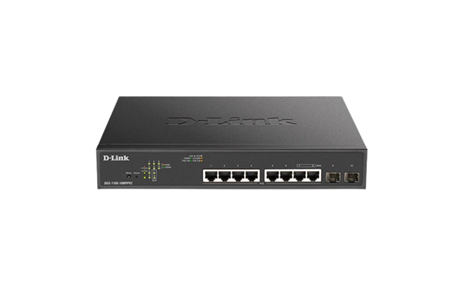

10-Port Gigabit PoE++ Smart Managed Switch
DGS-1100-10MPPV2
• 8 x 10/100/1000BASE-T PoE ports
• 2 x SFP ports
• Supports IEEE 802.3at/bt
• Supports IEEE 802.3bt PoE++ (Port 7 – 8) up to 90W
• 242W PoE Power Budget
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management
Simple. Easy. Smart.
Web UI
Easy to use web interface to access management features
VLANs
Segment your network into VLANs
QoS
Prioritization data traffic ensures smooth transmission
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Simplify Network Management
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors
Powered by PoE
The DGS-1100-10MPPV2 supports IEEE 802.3af/at/bt Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones, IP cameras, Wi-Fi access points and industrial IoT in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 242W. Port 7 & 8 of DGS-1100-10MPPV2 supports latest PoE standard of 802.3bt and delivers up to 90W per port, which can power up smart kiosks, PoS (Power of Sales), digital panels, smart lighting and more.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Specifications:
Hardware:
Auto MDI/MDIX
Yes
10/100/1000BASE-T PoE ports (802.3af/at)
8
802.3bt 90W Support
Yes (Port 7-8)
10/100/1000BASE-T ports (Including PoE ports)
8
Gigabit SFP ports
2
Port-based Bandwidth Control
Yes
Class of Service (CoS)
Yes
802.3x Flow Control
Yes
Store-and-Forwarding
Yes
Comply with RoHS
Yes
Energy Efficiency Ethernet (EEE)
Yes
FAN
Smart Fan
Jumbo Frame
10,000 bytes
Loopback Detection (LBD)
Yes
IGMP Snooping
Yes
802.1AX Link Aggregation
Yes
802.3ad Link Aggregation
Yes
SNMP
Yes
Web-based GUI
Yes
D-Link Discover Protocol (DDP)
Yes
D-Link Network Assistant
Yes
Port Mirroring
Yes
Cable Diagnostics
Yes
Switch Capacity
20 Gbps
Max. Packet Forwarding Rate
14.88 Mpps
Maximum Power Consumption (PoE On)
292W
Maximum PoE Budget
242W (30W max. per PoE Port 1-6 & 90W max. per Port Port 7-8)
Rate Limiting
Yes
Power Input
AC: 100-240V
Queue Handling
Yes
Strict Priority Queue (SPQ)
Yes
Weighted Round Robin (WRR)
Yes
SSL
Yes
Broadcast/Multicast/Unicast Storm Control
Yes
Traffic Segmentation
Yes
D-Link Safeguard Engine
Yes
DoS Attack Prevention
Yes
802.1D Spanning Tree (STP)
Yes
802.1w Rapid Spanning Tree (RSTP)
Yes
General:
EMI Certification
FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Safety Certification
cUL, UL, LVD, CB, BSMI
Physical:
Dimension
280 x 180 x 44mm
Weight
2.0kg
Operation Temperature
-5-50°C
802.1Q VLAN
Yes
Port-based VLAN
Yes
Voice VLAN
Yes
Auto Surveillance VLAN
Yes
Asymmetric VLAN
Yes
