Product Description
Elevating Audience Engagement
The X Series takes visual communication to new heights, offering both 21:9 and 16:9 display options to fit diverse needs. Combining large-format displays with a modular, easy-to-deploy design, it delivers stunning visual clarity, user-friendly functionality, and hassle-free setup. Perfect for impactful presentations and dynamic interactions, the X Series is designed to captivate audiences in corporate, educational, or entertainment settings, ensuring your message stands out in any environment.
Ultra slim screen
A stunning centerpiece that provides a visual 'wow' factor
Versatile Applications
Adapts to various settings for impactful and engaging large-scale content delivery
Seamless Integration

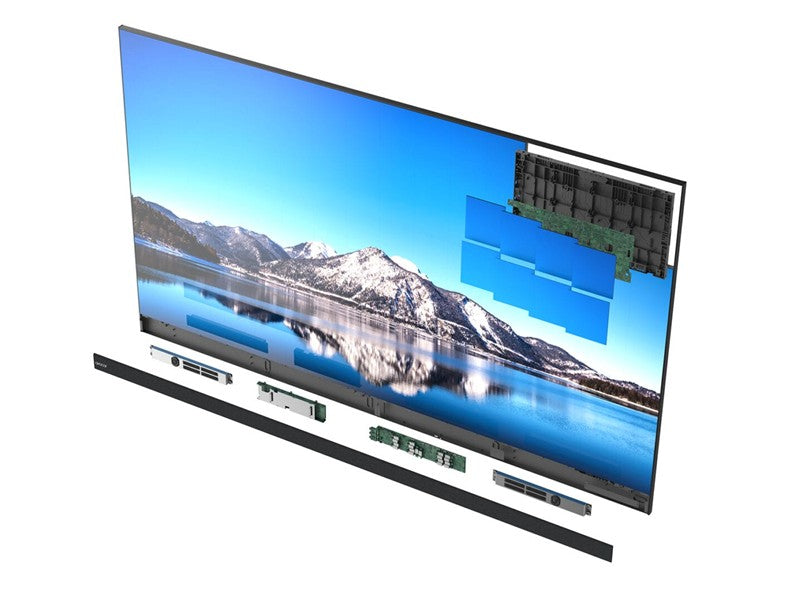

Modular design to fit into diverse spaces, no matter the size constraints
Dynamic display, unlimited potential

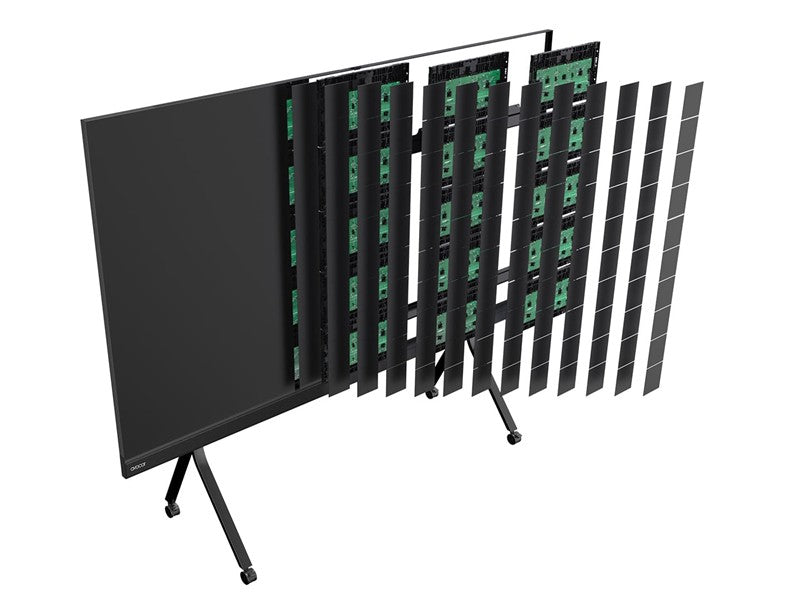

The Avocor X Series breaks new ground in display technology. With its innovative tiled wall design, available in 132” (21:9) and 138” (16:9) sizes, it overcomes traditional installation challenges, making it perfect for any space. This series isn't just about size; it's about transforming environments with a brilliant, seamless visual experience, ideal for places where lighting and visual impact are key. It's more than a display—it's a bold statement in visual innovation.

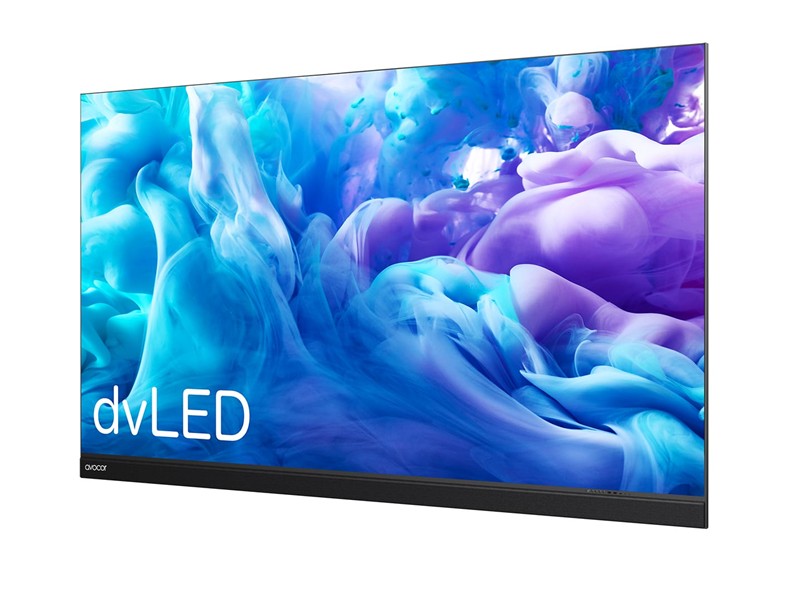

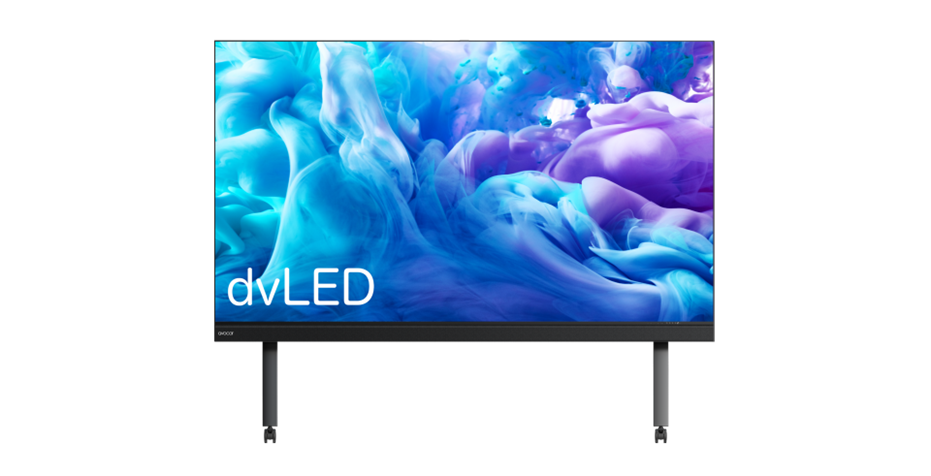

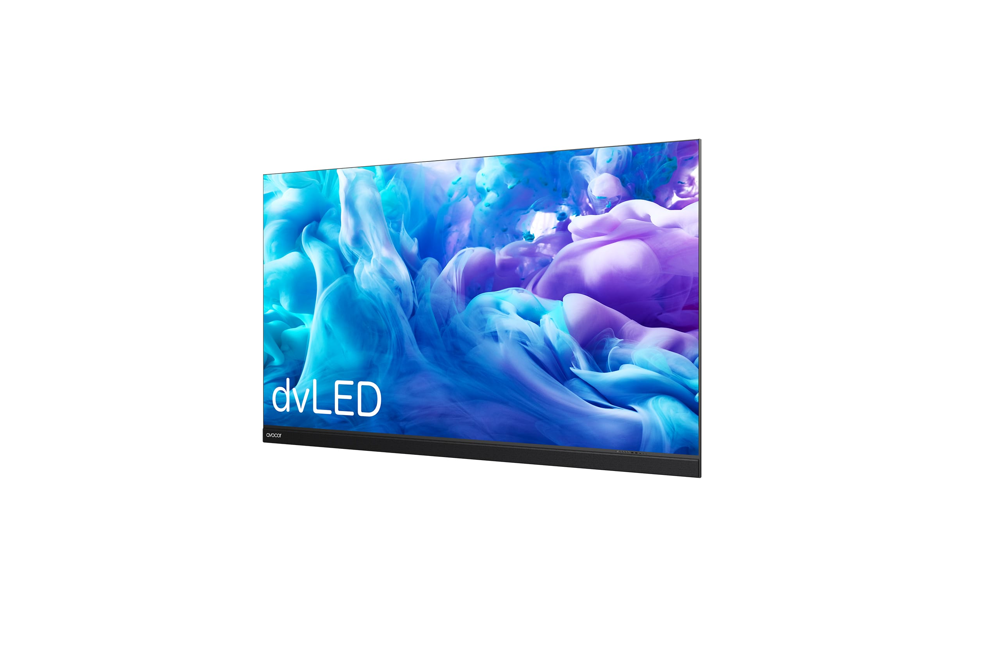

AVX-1380 Specifications
Display
- Size: 138”
- Pixel Configuration: Single SMD
- Pixel Pitch: 1.58 mm
- Screen Resolution (L × H): 1920 × 1080
- No. of Cabinets per Screen (L × H): 5 × 5 (25)
- Screen Dimensions (L × H × W): 3064 × 1832 × 31 mm 120.6” × 72” × 1.2”
- Screen Surface Area (L × H × W): 3050 × 1715 × 31 mm 120” × 67.5” × 1.2”
- Screen Weight (Net): 135 kg 297.6 lbs
- Recommended Viewing Distance: >3.8 m
- Cabinet Material: Die-cast Magnesium
- Service Access: Front

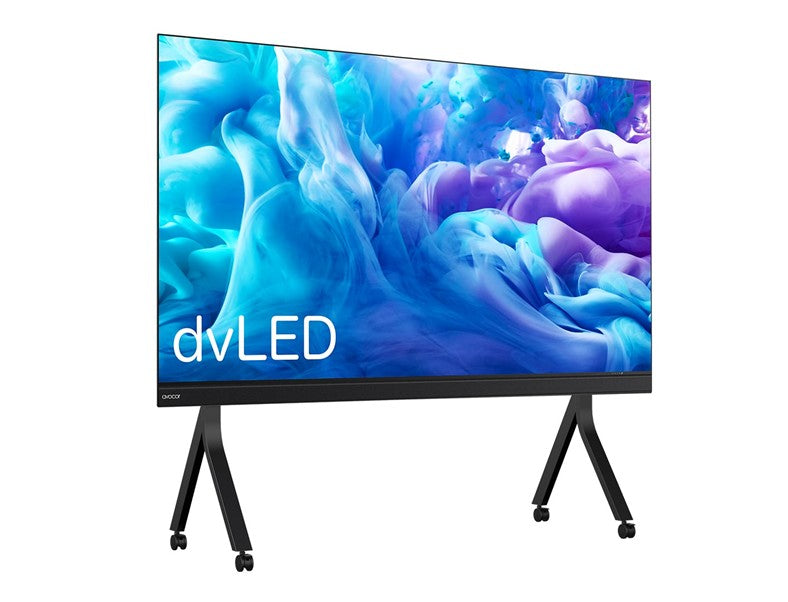

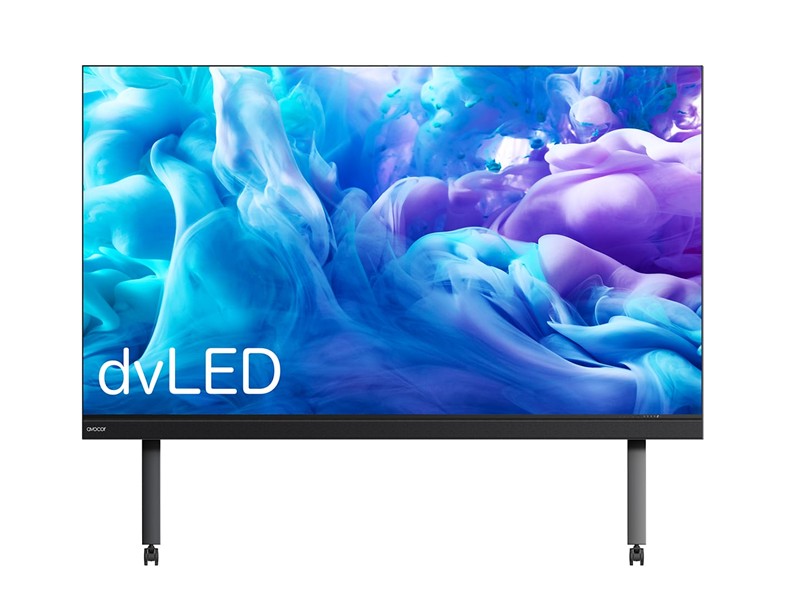

- Installation: Stand, Wall
Optical Specifications
- Max. Brightness after calibration: Up to 500 cd/m²
- Color Temperature: 2300 – 9300K adjustable
- Visual Viewing Angle (Horizontal): 170°
- Visual Viewing Angle (Vertical): 170°
- Brightness Uniformity: 98%
- Color Uniformity: ±0.15 Cx, Cy
- Contrast Ratio: 6500:1
- Processing Depth: 16 bit
Connectivity
- Front Inputs:
- 1 × USB-C (no PD)
- 1 × USB-A 3.0
- 1 × USB-A 2.0
- Bottom Inputs:
- 1 × HDMI 2.0, HDCP 2.2
- 1 × 3.5mm Aux
- Internal Inputs:
- 2 × HDMI 2.0, HDCP 2.2
- Control:
- 1 × RS-232
- 1 × LAN (RJ45)
- Wi-Fi: Yes
Audio
- Audio: 1 × Optical (SPDIF)
- Speakers: 2 × 30W forward facing
Electrical Specifications
- Max Power Consumption: 1.87 KW
- Avg. Power Consumption: 0.64 KW
- Power Supply: AC 100 V ~ 240 V, 50/60 Hz
- Stand-by Power: ≤0.5W
- Refresh Rate: 3,840 Hz
Operation Specifications
- Lifetime (Half Brightness): ≥100,000 hrs
- Operating Temperature: 10°C ~ 40°C
- Operating Humidity: 10% ~ 80% RH (Non-condensing)
What Comes in the Box
- Remote control
- Removal tool
- Wall mount
- Power cords (North America, UK, Europe, Australia)
- Spare LED modules
