Igniting the future of workplace collaboration
The H Series redefines workspace integration, merging elegant product design with top-tier functionality.
Perfectly suited for various collaborative settings, the H Series offers an immersive touch experience, user-friendly interface, and versatile integration options.
Designed for dynamic interactivity, the H Series enhances both the aesthetic and functional aspects of professional environments, making it an ideal choice for businesses seeking to elevate their collaborative capabilities.

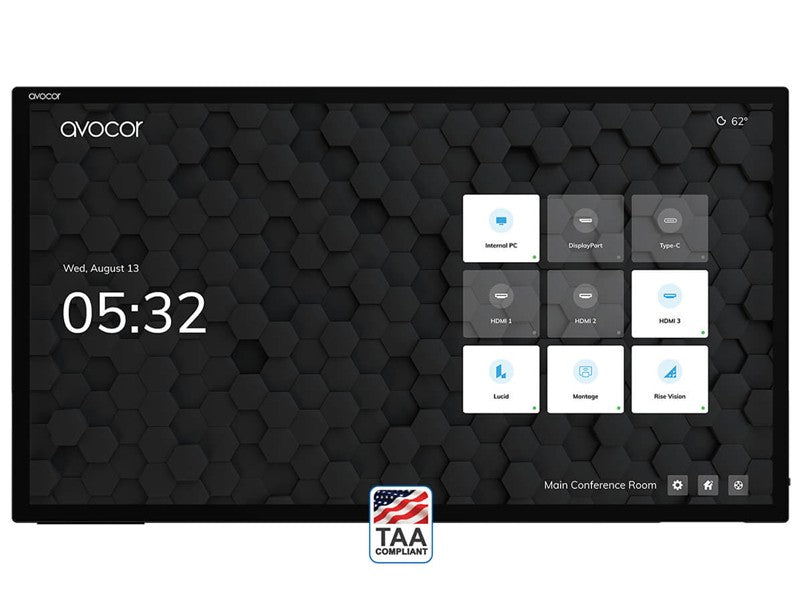

Elegant Design for Contemporary Spaces

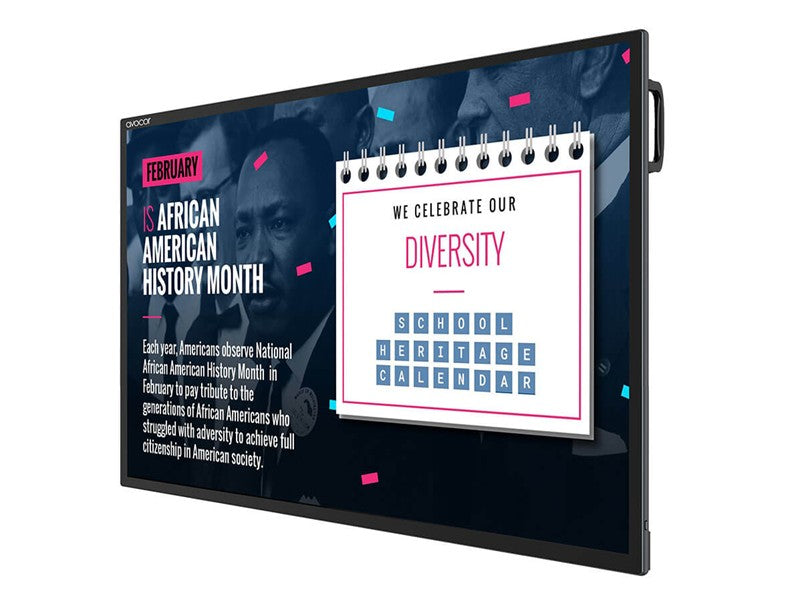

A cutting-edge, ultra-thin 3mm bezel display that redefines the modernity of interactive technology
Purpose built for collaborative workflows
Preloaded with wireless screensharing and whiteboard software for instant brainstorm sessions
Advanced Touch Technology for Collaborative Work
Advanced PCAP touch technology and intuitive interface designed for seamless collaboration

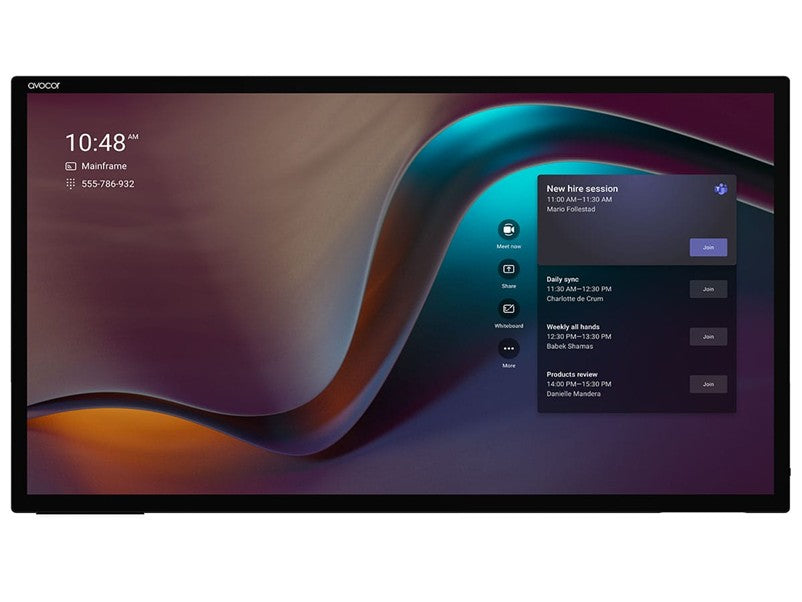

The future of interactive hybrid displays
The H Series represents the peak of interactive display solutions tailored for the hybrid workspace. Accommodating up to 40 touchpoints with rapid-response PCAP technology, it facilitates a level of engagement that rivals in-person interaction.
The ultra-thin bezel and high contrast ratio provide an immersive viewing experience, while the comprehensive connectivity suite and powerful audio capabilities make the H Series the go-to for premium collaborative environments.
This series is a testament to Avocor’s dedication to creating spaces where teams can not only meet but truly connect and create.

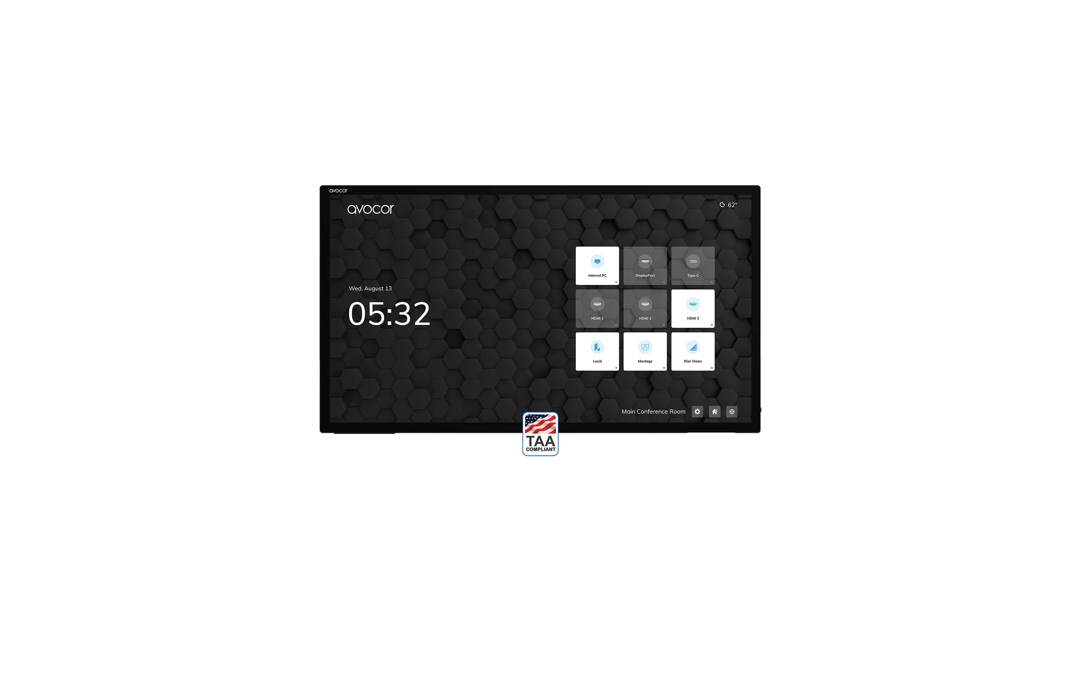

AVH-8620 Specifications
Display
- Size: 86”
- Backlight: Direct-lit LED
- Aspect Ratio: 16:9
- Resolution: 3840 × 2160 @ 60Hz
- Response Time: 8 ms
- Brightness: 400 cd/m² (with bonded glass)
- Contrast Ratio: 5000:1
- Viewing Angle: 178° / 178°
- Supported Colors: 10 Bit, 1.07 Billion Colors
- Display Orientation: Landscape
Touch System
- Interface: 2 × USB-B 2.0, 1 × Type-C
- Touch: Up to 40 points Touch + 1 stylus
- Glass: Zero parallax, 2mm optically bonded, anti-glare, anti-fingerprint
- Supported Operating Systems: Windows 8+, Mac OSX, Linux*
Connectivity
- Front Inputs/Guest Inputs: None
- Top Inputs: 1 × USB-A 3.0 hub
- Bottom Inputs: None
- Side IO:
- 1 × Type-C (100W PD w/o OPS)
- 4 × HDMI 2.0
- HDCP 2.3
- 3 × USB-B 2.0
- 1 × DisplayPort 1.4
- 2 × USB-A 3.0 hub
- 1 × USB-A service port
- 1 × HDMI 2.0 out
- Audio:
- 1 × 3.5mm audio out
- 1 × Optical (SPDIF)
- Control:
- 1 × RS-232
- 2 × LAN Ethernet (RJ-45)
- OPS Slot: Yes
- Wi-Fi: Pluggable Module (WiFi 6 802.11ac/b/g/n/a/ax)
Audio
- Built-in Speakers: 2 × 16W (spatial-stereo, downward facing)
- Microphone Array: None
- Camera: None
Display & Remote Functions
- Auto-Source-Detection: Yes
- Source Preview: UiQ
- Image Settings: UiQ, FUSE
Physical Specifications
- Product Dimensions (L × W × H): 1962 × 80 × 1141 mm 77.24 × 3.15 × 44.92 in
- Bezel Dimensions: 3 mm all sides
- Shipping Dimensions (L × W × H): 2110 × 225 × 1270 mm 83.07 × 8.86 × 50 in
- Weight:
- Net: 61 kg 134.5 lbs
- Gross: 81 kg 178.6 lbs
- Wall Mount (VESA): 800 × 600 mm (Included)
- IPC Mount: 100 × 100 mm + 80 × 80 mm
- Handles: 2
Sensors
- Type: Presence, ambient light
- Presence Sensor: 24 GHz Radar Presence Detector
Power
- Max Power Consumption: 390W
- Standby: ≤0.5W
Environmental
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ 60°C
- Humidity: 20% ~ 85%
What Comes in the Box
- 1 × Remote control & batteries
- 2 × soft-tip passive styluses
- Wall Mount
- AC power cords (1 × UK, 1 × EU, 1 × US, 1 × AUS)
- 1 × USB-B 3.0 cable (3m 118.1 in)
- 1 × Type-C cable (1.8m 70.9 in)
- 1 × HDMI cable (3m 118.1 in)
- 1 × Quick start guide
- Wi-Fi module included
