Expand, Engage, Empower
AVE-9200
Experience Ultra-Wide Interaction and Seamless Connectivity.

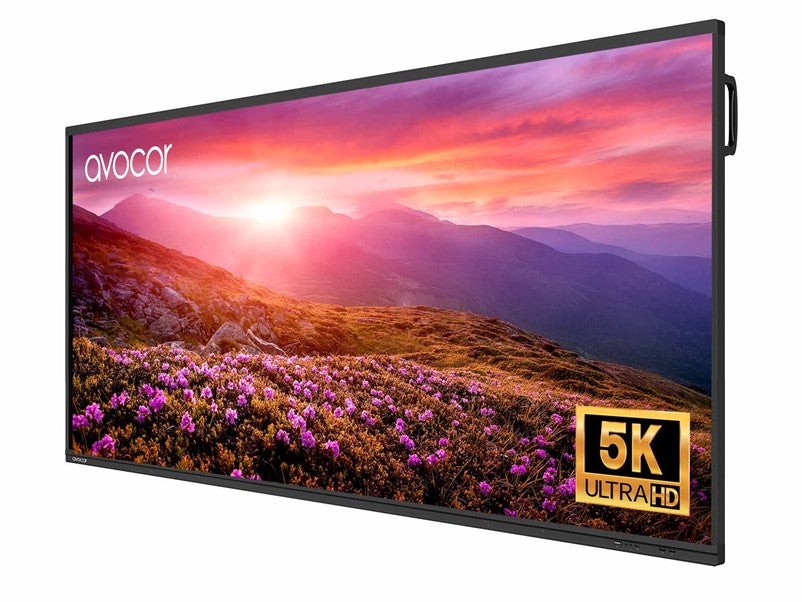

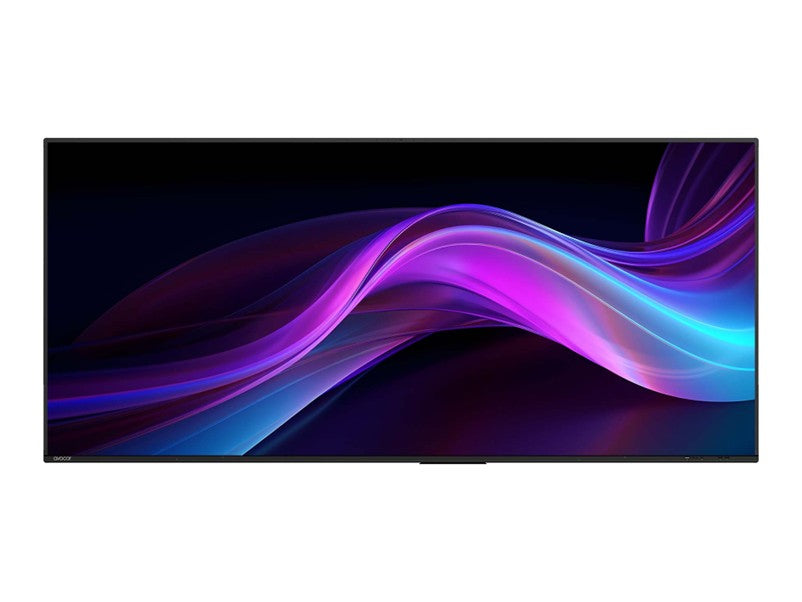

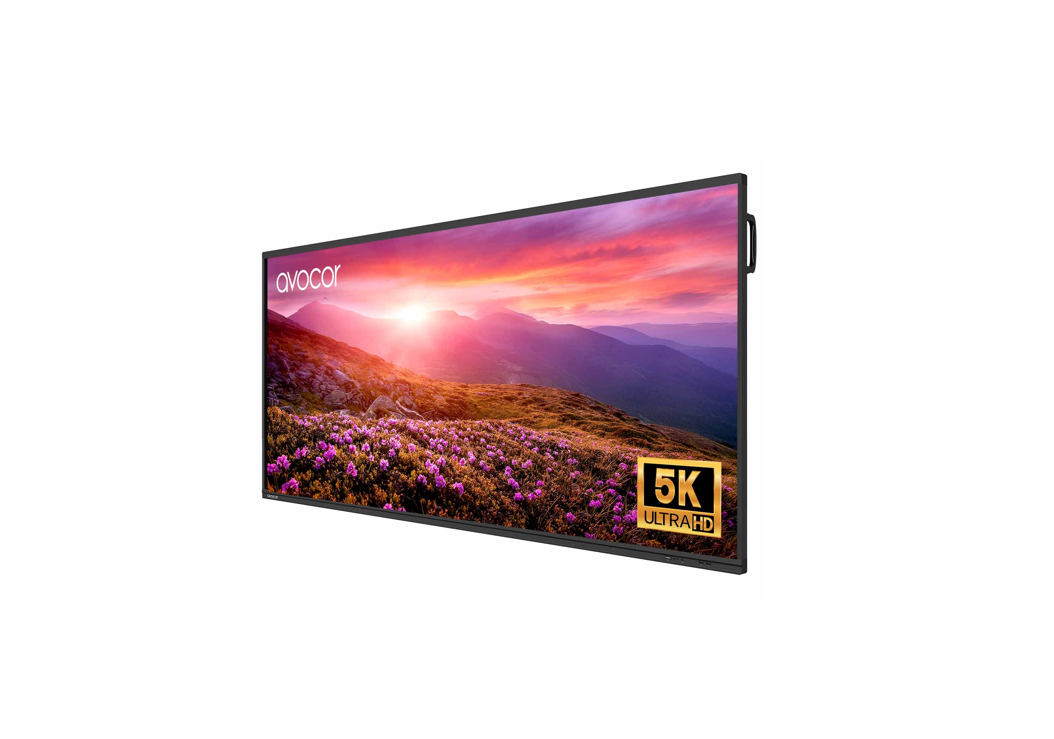

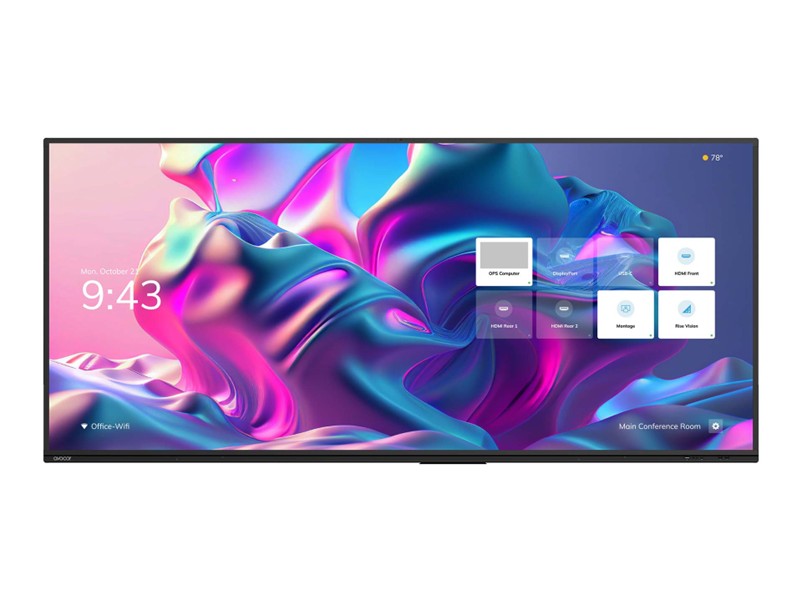

The Avocor E92 interactive touch screen display revolutionizes meeting environments with its 92-inch ultra-wide LCD display and 21:9 aspect ratio, eliminating the need for dual-monitor setups and expanding interactive workspaces. Offering a high resolution of 5120x2160, it ensures crystal-clear visuals and supports multi-user interaction with up to 50 touch points on Windows.
Optimized for major video conferencing tools like Microsoft Teams and Zoom, the E92 enhances remote participation, making every interaction more engaging. Its robust connectivity options, including high-speed HDMI and USB-C, ensure seamless integration into any IT infrastructure. Designed with durability in mind, the sleek display features toughened glass and a 30,000-hour backlight life, making it a reliable choice for high-traffic environments. The E92 is an essential tool for dynamic, effective collaboration in modern workspaces.
AVE-9200 Specifications
Display
- Size: 92"
- Backlight: Direct-lit LED
- Aspect Ratio: 21:9
- Resolution: 5120 × 2160 @ 60Hz
- Response Time: 6.5 ms (Typ)
- Brightness: 450 cd/m²
- Contrast Ratio: 4000:1
- Viewing Angle: 178° / 178°
- Supported Colors: 1.07B (8 bit + FRC)
- Operation Time: 16 hours × 7 days
- Display Orientation: Landscape
Touch System
- Interface: 2 × USB-B 2.0, 1 × Type-C
- Touch: Up to 50 point IR + 1 stylus
- Glass: Zero parallax, zero-bond, anti-glare, anti-fingerprint glass
- Supported Operating Systems: Windows 7/8/10/11, Windows XP, Linux, Mac, Android
CPU
- CPU: Rockchip RK3588 A76 ×4 + A55 ×4
- GPU: Mali-G610 MP4
- RAM/ROM: 8GB / 64GB
- Android Version: 13
Connectivity
- Front Inputs/Guest Inputs:
- 1 × Type-C (15W PD)
- 2 × USB-A 3.0
- Top Inputs:
- 2 × USB-A 3.0
- Side IO:
- 1 × Type-C (100W)
- 1 × DP 1.4
- 3 × HDMI 2.0
- HDCP 2.3
- 3 × USB-B 2.0
- 1 × USB-A 3.0
- 1 × HDMI 2.0 out
- Audio:
- 1 × 3.5mm Aux
- 1 × Optical (SPDIF)
- Control:
- RS232
- 2 × RJ45
- OPS Slot: Intel 80 pin
- Wi-Fi: Yes
Audio
- Built-in Speakers: 2 × 20W + 20W sub
- Microphone Array: None
- Camera: None
Display & Remote Functions
- Auto-Source-Detection: Yes
- Image Settings: UiQ
Physical Specifications
- Screen Dimensions (L × W × H): 2203 × 92 × 1000 mm 86.7 × 3.6 × 39.4 in
- Bezel Dimensions:
- Top: 29 mm 1.14 in
- Sides: 18 mm 0.7 in
- Bottom: 39 mm 1.5 in
- Shipping Dimensions (L × W × H): 2360 × 225 × 1140 mm 92.9 × 8.8 × 44.8 in
- Weight:
- Net: 67.6 kg 149 lbs
- Gross: 88.5 kg 195 lbs
- Wall Mount (VESA): 800 × 600 mm
- IPC Mount: None
- Handles: 2
Power
- Power Supply: AC IN 100-240V ~ 50/60Hz
- AC Power Out: AC Out 100-240V ~ 50/60Hz
- Max Power Consumption: 250W (w/o OPS)
- Standby: ≤0.5W
Environmental
- Operating Temperature: 0° ~ 40°
- Storage Temperature: -20° ~ 60°
- Humidity: 10% ~ 90%
What Comes in the Box
- 1 × Remote control & batteries
- 2 × 3mm fine-tip passive touch styluses
- AC power cords (1 × UK, 1 × EU, 1 × US, 1 × AUS)
- 1 × USB-B 3.0 cable (3m 118.1 in)
- 1 × HDMI cable (3m 118.1 in)
- 1 × Type-C cable (1.8m 70.9 in)
- Wall Mount
- Wi-Fi module included
