TP-Link SG3428XF Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

HARDWARE FEATURES

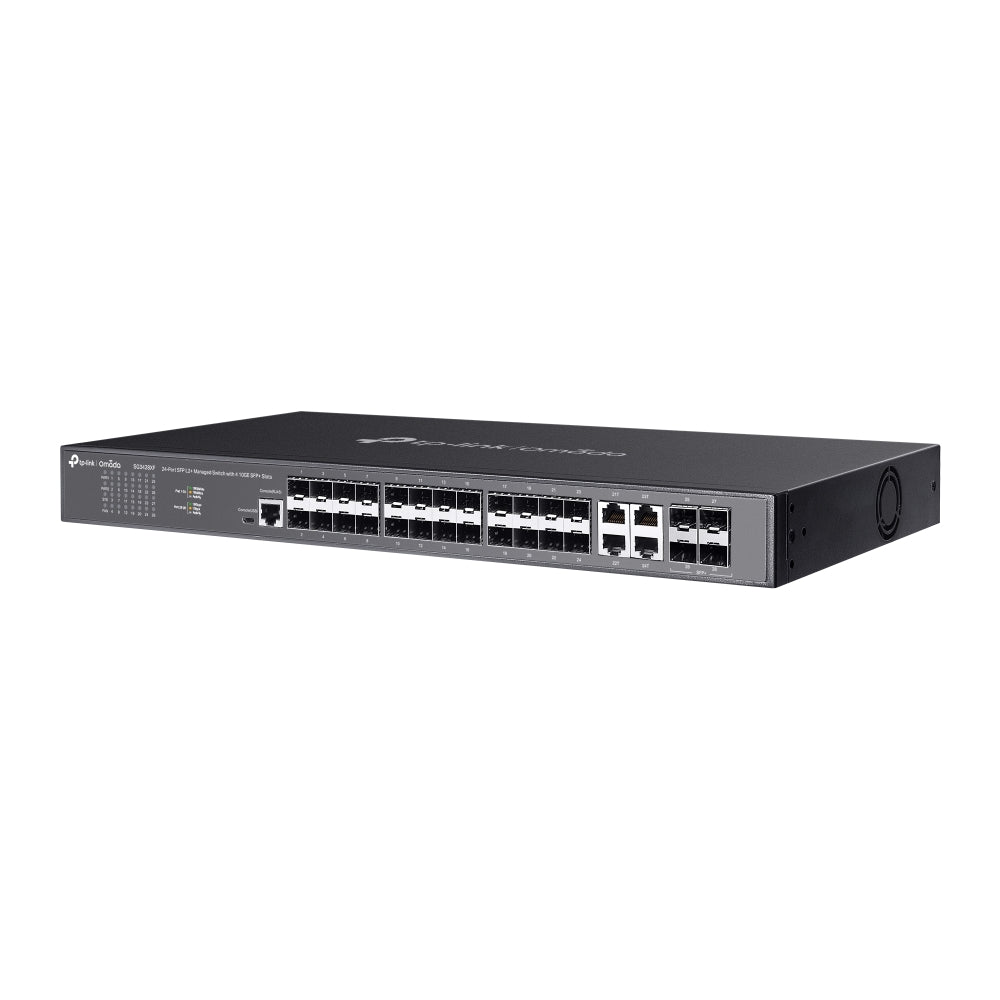

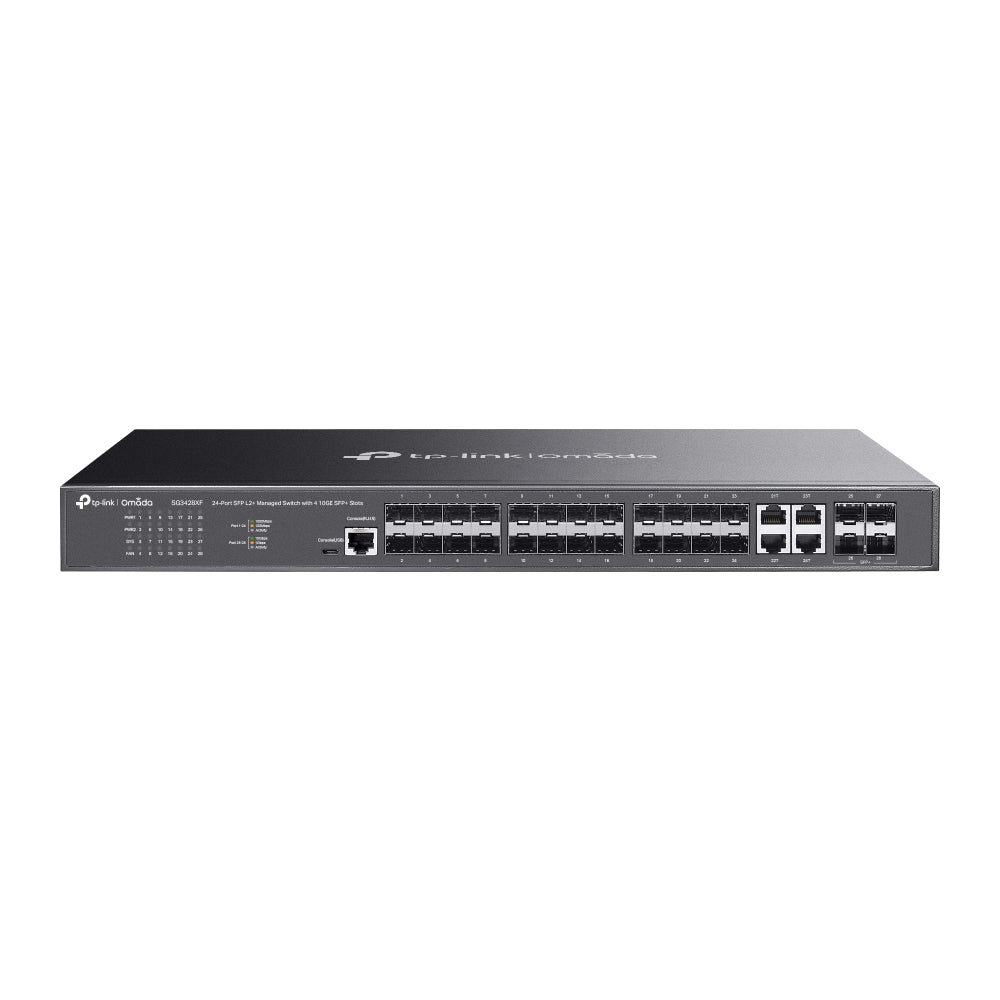

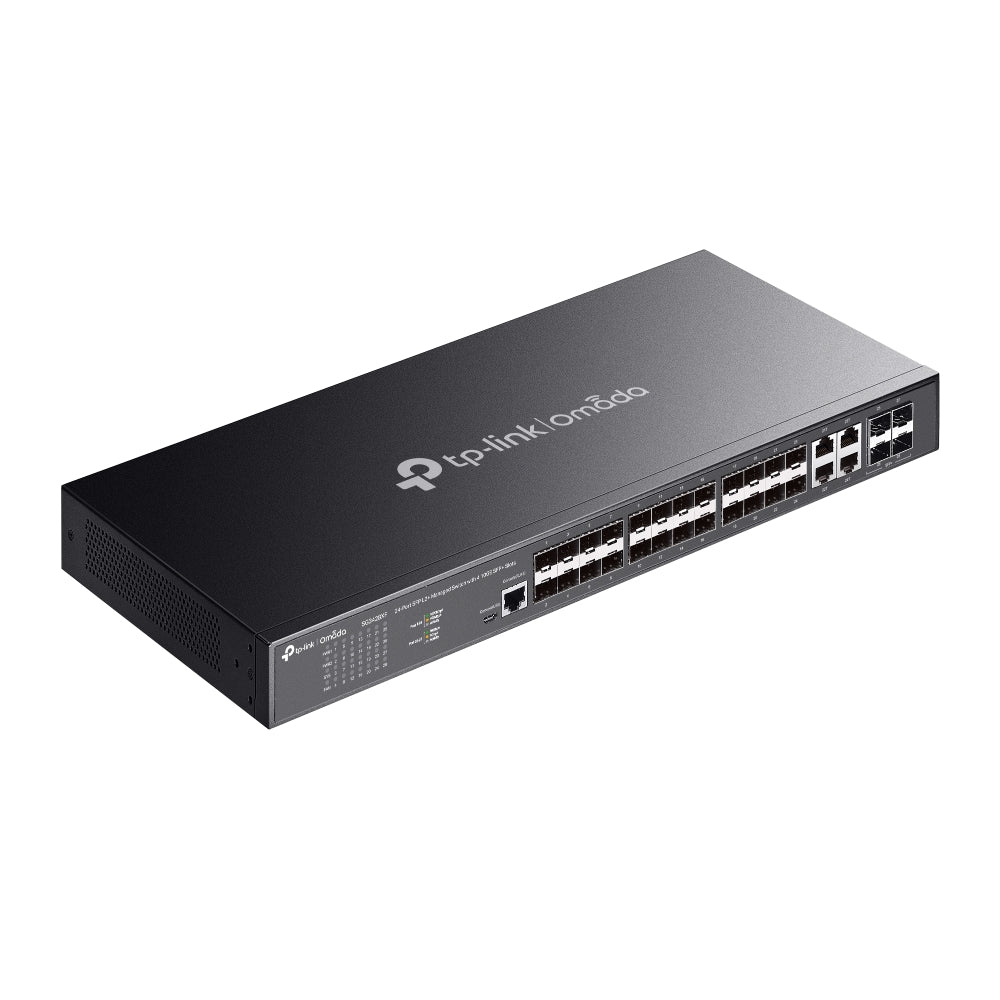

Interface: • 20× Gigabit SFP Slots • 4× Gigabit Combo SFP/RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro‑USB Console Port
Fan Quantity: 1 Fan
Physical Security Lock: √

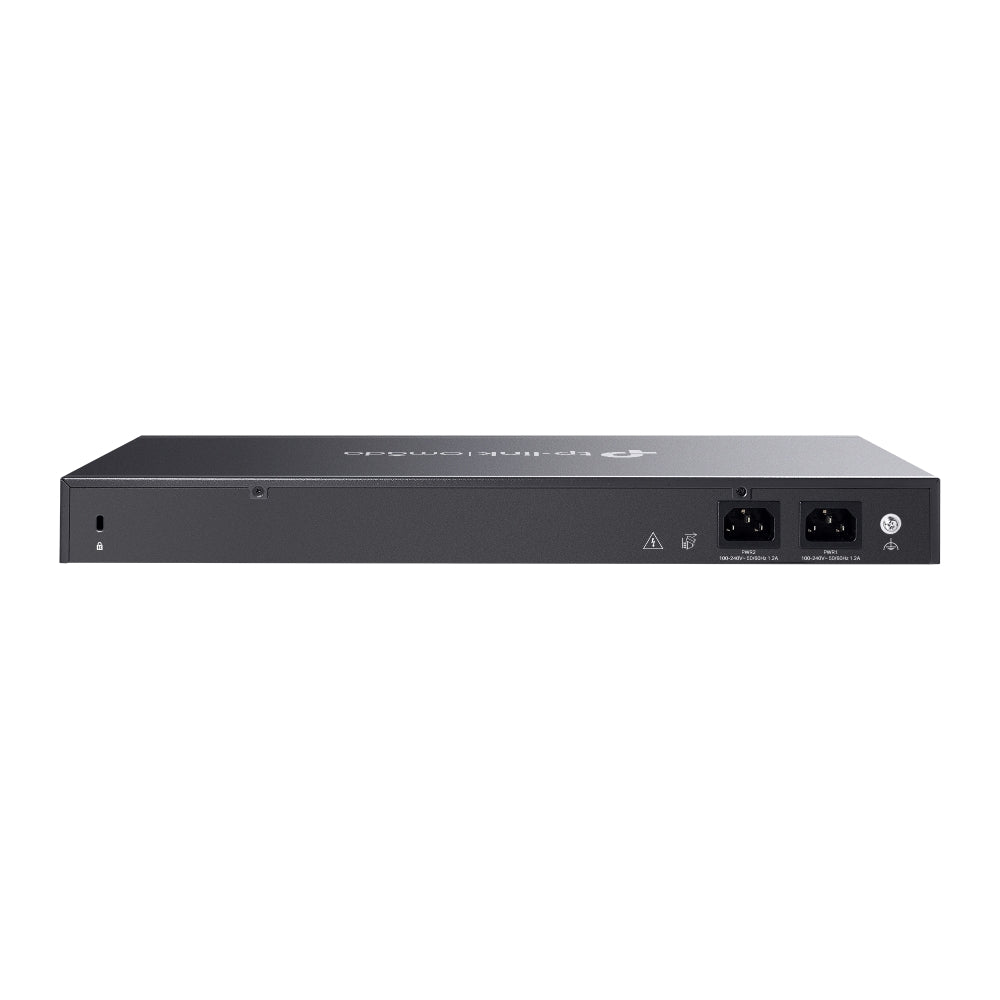

Power Supply: • Dual Redundant Power Supplies • 100–240 V AC ~ 50/60 Hz
Dimensions: 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting: Rack Mountable
Max. Power Consumption: 35.7 W (110 V/60 Hz)
Max. Heat Dissipation: 121.81 BTU/hr (110 V/60 Hz)

PERFORMANCE
Switching Capacity: 128 Gbps
Packet Forwarding Rate: 95.23 Mpps
MAC Address Table: 16 K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB

SOFTWARE FEATURES
Quality of Service: • 8 priority queues • 802.1p CoS/DSCP priority • SP/WRR/SP+WRR scheduling • Port/Flow‑based Rate Limiting • Smoother Performance • QoS remark (802.1P/DSCP)
L2 and L2+ Features: • 128 IPv4/IPv6 Interfaces • 48 IPv4/IPv6 Static Routes • Static ARP: 128 • Dynamic ARP: 512 • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay (Interface/VLAN) • DHCP L2 Relay • Link Aggregation • STP • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast: • 1000 IGMP/MLD Groups • IGMP Snooping • IGMP Authentication • MVR • MLD Snooping • Multicast Filtering (256 profiles, 16 entries each)

Advanced Features: • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†

ISP Features: • L2PT • DLDP • PPPoE ID Insertion • ERPS • 802.3ah OAM • DDM • sFlow

VLAN: • 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN (30 entries) • Protocol VLAN (16 templates / 16 entries) • Private VLAN • GVRP • VLAN Mapping/Replace (QinQ) • Voice VLAN

Access Control List: • Time‑based ACL • MAC ACL • IP ACL • Combined ACL • Packet Content ACL • IPv6 ACL • ACL Policies (Mirror, Redirect, Rate Limit, QoS Remark) • ACL on Port/VLAN

Security: • IP‑MAC‑Port Binding (512 entries) — DHCP Snooping / ARP Inspection / IPv4 Source Guard • IPv6‑MAC‑Port Binding (512 entries) — DHCPv6 Snooping / ND Snooping / ND Detection / IPv6 Source Guard • DoS Defense • Port Security (64 MAC/port) • Storm Control • 802.1X (Port/MAC) • VLAN Assignment • MAB • Guest VLAN • RADIUS Authentication & Accounting • AAA (TACACS+) • Port Isolation • HTTPS (SSLv3/TLS1.2) • SSHv1/SSHv2 • IP/Port/MAC ACL

IPv6: • Dual‑Stack IPv4/IPv6 • MLD Snooping • IPv6 ACL • IPv6 Interfaces • Static IPv6 Routing • ND • MTU Discovery • ICMPv6 • TCPv6/UDPv6 • DHCPv6 Client • Ping6 • Traceroute6 • Telnet (v6) • IPv6 SNMP/SSH/SSL • HTTP/HTTPS • IPv6 TFTP

MIBs: • RFC1213 • RFC2233 • RFC1643 • RFC1493 • RFC2674 • RFC2819 • RFC2021 • RFC2620 • RFC2618 • RFC2925 • TP‑Link Private MIB

MANAGEMENT FEATURES
Omada App: Yes (requires Omada Hardware/Cloud/Software Controller)
Centralized Management: • Omada Cloud‑Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes
Zero‑Touch Provisioning: Yes (via Omada Cloud‑Based Controller)
Management Tools: • Web GUI • CLI (console/telnet) • SNMP v1/v2c/v3 (Trap/Inform, RMON 1/2/3/9) • SDM Template • DHCP/BOOTP Client • LLDP/LLDP‑MED • DHCP AutoInstall • Dual Image/Config • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log

OTHERS
Certification: CE, FCC, RoHS
Package Content: • SG3428XF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements: Windows 98SE–11, macOS, NetWare, UNIX, Linux
Environment: • Operating Temp: 0–45°C (32–113°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
