TP-Link SG2206MP Omada Access 6-Port Gigabit Switch with 4-Port PoE+

HARDWARE FEATURES
Interface: • 4× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP Slot
Physical Security Lock: √
Power Supply: 53.5 VDC / 1.31 A
PoE Ports (RJ45): • 802.3af/at compliant • 4× PoE+ Ports • PoE Budget: 63 W* • Fast PoE • Perpetual PoE
Dimensions: 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)

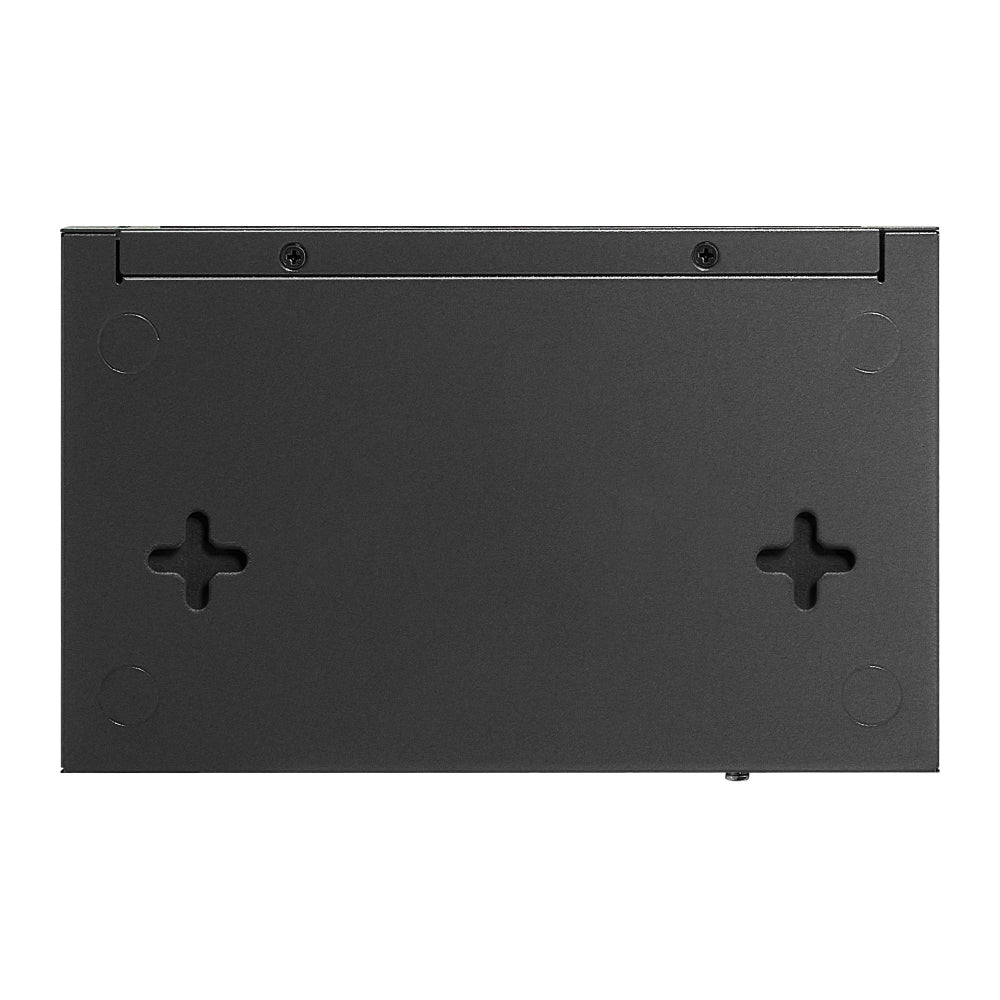

Mounting: Desktop / Wall Mounting
Max. Power Consumption: 73.7 W (110 V/60 Hz, with 63 W PD)
Max. Heat Dissipation: 250.4 BTU/hr (110 V/60 Hz, with 63 W PD)

PERFORMANCE
Switching Capacity: 12 Gbps
Packet Forwarding Rate: 8.93 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB

SOFTWARE FEATURES
Quality of Service: • 802.1p CoS/DSCP Priority • 8 Priority Queues • SP / WRR Scheduling • Queue Weight Config • Port/Flow Rate Limiting • Storm Control (kbps/ratio) • Broadcast/Multicast/Unknown‑Unicast Control
L2 and L2+ Features: • 16 IPv4/IPv6 Interfaces • 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay (Interface/VLAN) • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • STP/RSTP/MSTP • Loopback Detection • 802.3x Flow Control • Mirroring • DLDP • LLDP/LLDP‑MED • STP Security (TC Protect / BPDU Filter/Protect / Root Protect)
L2 Multicast: • 511 IPv4/IPv6 Shared Groups • IGMP Snooping • MVR • Multicast Filtering • Limited IP Multicast (256 profiles × 16 entries)

Advanced Features: • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrade† • Intelligent Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†

VLAN: • 4K VLAN Groups • 802.1Q VLAN • MAC VLAN (16 entries) • Protocol VLAN • GVRP • Voice VLAN

Access Control List: • Up to 230 entries • Time‑Range • Time‑based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Permit/Deny • Policy Actions (Mirror/Redirect/Rate Limit/QoS Remark) • Port/VLAN Binding

Security: • IP‑MAC‑Port Binding • AAA • 802.1X (Port/MAC) • PAP/EAP‑MD5 • MAB • Guest VLAN • RADIUS Auth/Accounting • IP/IPv6‑MAC Binding (512 entries) with DHCP Snooping / DHCPv6 Snooping / ARP Inspection / ND Snooping / ND Detection • IP Source Guard (253 entries) • IPv6 Source Guard (183 entries) • DoS Defense • DHCP Filter • Port Security (64 MAC/port) • Storm Control • Port Isolation • HTTPS (SSLv3/TLS1.2) • SSHv1/SSHv2 • IP/Port/MAC ACL

IPv6: • IPv6 Static Routing & ACL • Dual‑Stack IPv4/IPv6 • IPv6 Interfaces • MLD Snooping • ND • MTU Discovery • ICMPv6 • TCPv6/UDPv6 • IPv6 Apps: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP/SSH/SSL, IPv6 HTTP/HTTPS, IPv6 TFTP

MIBs: • RFC1213 (MIB II) • RFC1493 (Bridge MIB) • RFC2674 (P/Q‑Bridge) • RFC2620 (Radius Accounting) • RFC2618 (Radius Authentication) • RFC2925 (Remote Ping/Traceroute) • TP‑Link Private MIBs • RFC1757 RMON (1/2/3/9)

MANAGEMENT FEATURES
Omada App: Yes (requires Omada Hardware/Cloud/Software Controller)
Centralized Management: • Omada Cloud‑Based Controller (v5.15.22+) • Omada Hardware Controller (v5.15.20+) • Omada Software Controller (v5.15.20+)
Cloud Access: Yes
Zero‑Touch Provisioning: Yes (via Omada Cloud‑Based Controller)
Management Features: • Web GUI • CLI (telnet) • SNMP v1/v2c/v3 • SNMP Trap/Inform • RMON (1/2/3/9) • SDM Template • DHCP/BOOTP Client • Dual Image/Dual Config • CPU Monitoring • Cable Diagnostics • IEEE 802.1az EEE • SNTP • System Log • DDM • OAM

OTHERS
Certification: CE, FCC, RoHS
Package Content: • SG2206MP • Power Adapter • Power Cord • Rackmount Kit • Rubber Feet • Installation Guide
System Requirements: Windows 98SE–11, macOS, NetWare, UNIX, Linux
Environment: • Operating Temp: −5–40°C (23–104°F) • Storage Temp: −40–70°C (−40–158°F) • Operating Humidity: 10–90% RH • Storage Humidity: 5–90% RH
