Product Description
ER7406

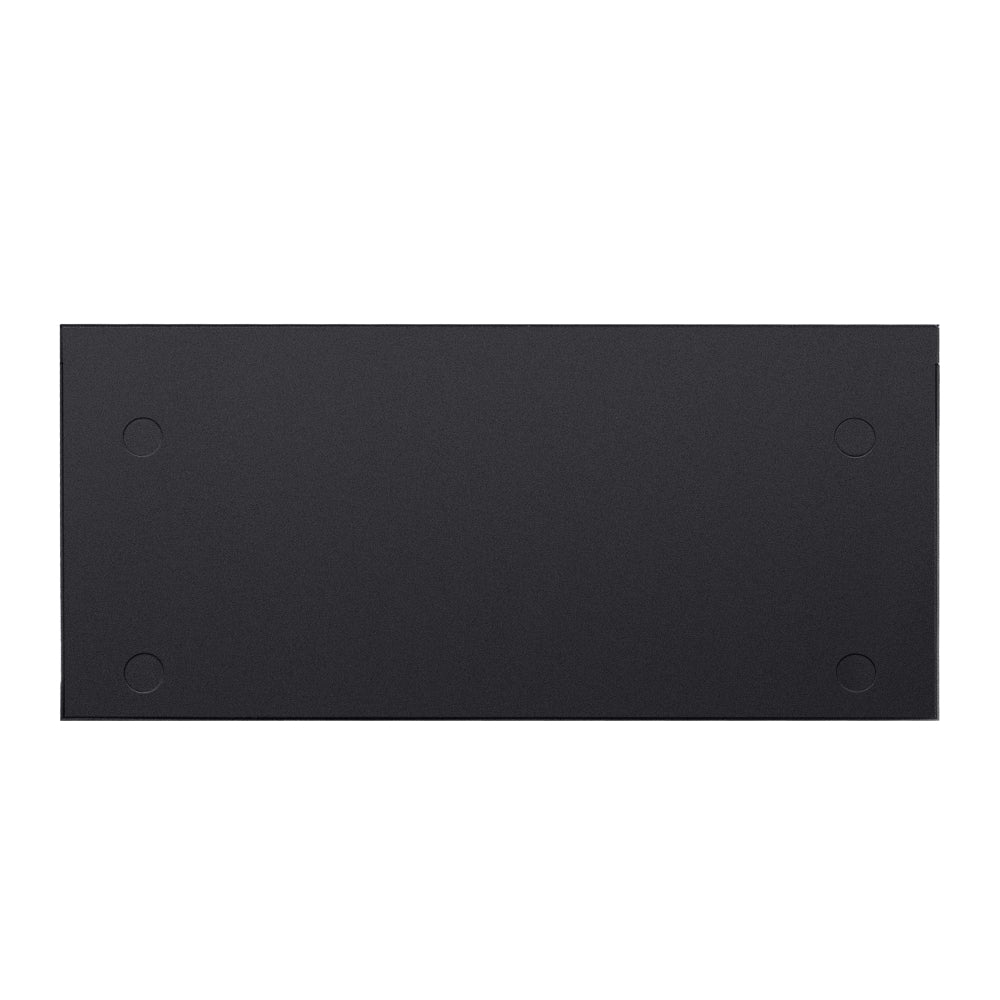

Omada Gigabit Rackmount/Desktop VPN Gateway
- 1× Gigabit SFP WAN/LAN port
- 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
- Rackmount/Desktop
Specifications:
SECURITY
Access Control: Source/Destination IP Based Access Control / FQDN
Filtering: WEB Group Filtering§; URL Categories and URLs Filtering; Web Security§
ARP Inspection: Sending GARP Packets; ARP Scanning§; IP‑MAC Binding; ARP Detection
Attack Defense: TCP/UDP/ICMP Flood Defense; Block TCP Scan (Stealth FIN/Xmas/Null); Block Ping from WAN
HARDWARE FEATURES
Standards & Protocols: IEEE 802.3/3u/3ab/3z/3x/1q; TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP/HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SNMP
Interface: 1× Gigabit SFP WAN/LAN; 1× Gigabit WAN; 4× Gigabit LAN/WAN; 1× USB 3.0
Network Media:
- 10BASE‑T: Cat 3/4/5 UTP or 100Ω STP (100 m)
- 100BASE‑TX: Cat 5/5e UTP or 100Ω STP (100 m)
- 1000BASE‑T: Cat 5/5e/6 (100 m)
Other: Fanless; Reset Button; 100–240VAC; 128 MB NAND; 512 MB DDR4; LEDs: PWR, SYS, SFP, USB, WAN, WAN/LAN; 294×140×44 mm; 4 kV surge protection; Steel; Desktop/Rackmount; 7.5 W (USB) / 4.5 W (no USB)
PERFORMANCE
IPS: TCP 229 Mbps; UDP 188 Mbps
DPI: TCP 933 Mbps; UDP 927 Mbps
GRE: 611.9 Mbps (unencrypted); 325.0 Mbps (encrypted)
WireGuard: 341.3 Mbps
Sessions: 150,000 concurrent; 5,300 new/s
NAT: Static 945.3/940.5; DHCP 939.6/940.9; PPPoE 943.6/940.9; L2TP 880.1/859.0; PPTP 855.0/907.2 Mbps
IPsec: SHA1‑AES256 617.1; SHA256‑AES256 592.8; SHA384‑AES256 592.4; SHA512‑AES256 604.5 Mbps
Other VPN: OpenVPN 139.1; L2TP 977.4/334.6; PPTP 1064.1/206.8; SSL 131.6 Mbps
Forwarding: 66‑byte 1,453,489 pps; 1518‑byte 81,279 pps
BASIC FUNCTIONS
WAN: Static IP; Dynamic IP; PPPoE; PPTP; L2TP
MAC Clone: Modify WAN/LAN MAC (LAN only standalone)
DHCP: Server; DHCPv6 PD; Options; Reservation; Multi‑IP; Multi‑Net; Option 60
IPv6: StaticIP; SLAAC; DHCPv6; PPPoE; 6to4; PassThrough; Non‑Address
VLAN: 802.1Q
IPTV: IGMP v2/v3 Proxy; Custom; Bridge
ADVANCED FEATURES
Routing: Static; Policy; RIP (Standalone); OSPF (Standalone)
Bandwidth Control: IP‑based
Load Balance: Intelligent LB; App Routing; Link Backup; Online Detection
NAT: One‑to‑One; Multi‑Net; Port Forwarding; Port Triggering§; NAT‑DMZ; ALG; UPnP; Disable NAT
Session Limit: IP‑based
VPN
GRE: Standalone
SD‑WAN: Controller mode
SSL VPN: 50 tunnels
IPsec: 100 tunnels; LAN‑LAN/Client‑LAN; DES/3DES/AES; IKEv1/v2; NAT‑T; DPD; PFS; MD5/SHA1/SHA2‑384/512
PPTP: Server; Client (10); 50 tunnels; MPPE
L2TP: Server; Client (10); 50 tunnels; L2TP over IPsec
OpenVPN: Server; Client (5)**; 55 tunnels; Certificate+Account; Full Mode
WireGuard: 20 tunnels
AUTHENTICATION
No Auth; Simple Password*; Hotspot (Local/Voucher*/SMS/Radius*); External Radius; External Portal*; LDAP§
MANAGEMENT
Omada App: Yes (with controller)
Centralized: Cloud/Hardware/Software Controller
Cloud Access: Yes
DDNS: Dyndns, No‑IP, Peanuthull, Comexe, Custom
Maintenance: Web UI; Remote Mgmt; Import/Export; SNMP; Diagnostics†; NTP Sync†; Port Mirroring; CLI†; Syslog
†Standalone only
Zero‑Touch: Yes (Cloud Controller)
Enhancements: Auto Discovery*; Batch Config*; Batch Firmware*; Monitoring*; Event Warnings*; Unified Config*; Reboot Schedule*
OTHERS
Certification: CE, FCC, RoHS
Package: ER7406; Power Cord; Quick Guide; Rackmount Kit
System Requirements: Windows 98SE–10; macOS; NetWare; UNIX; Linux
Environment: Operating 0–50°C; Storage –40–70°C; Humidity 10–90% / 5–90%
