Product Description
EAP725-Outdoor

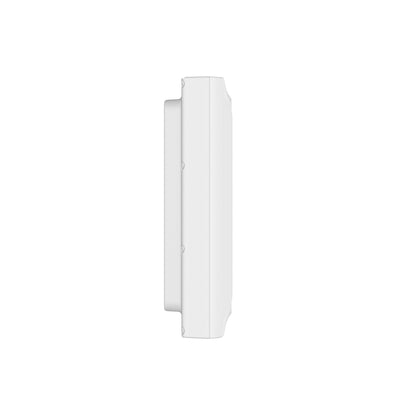

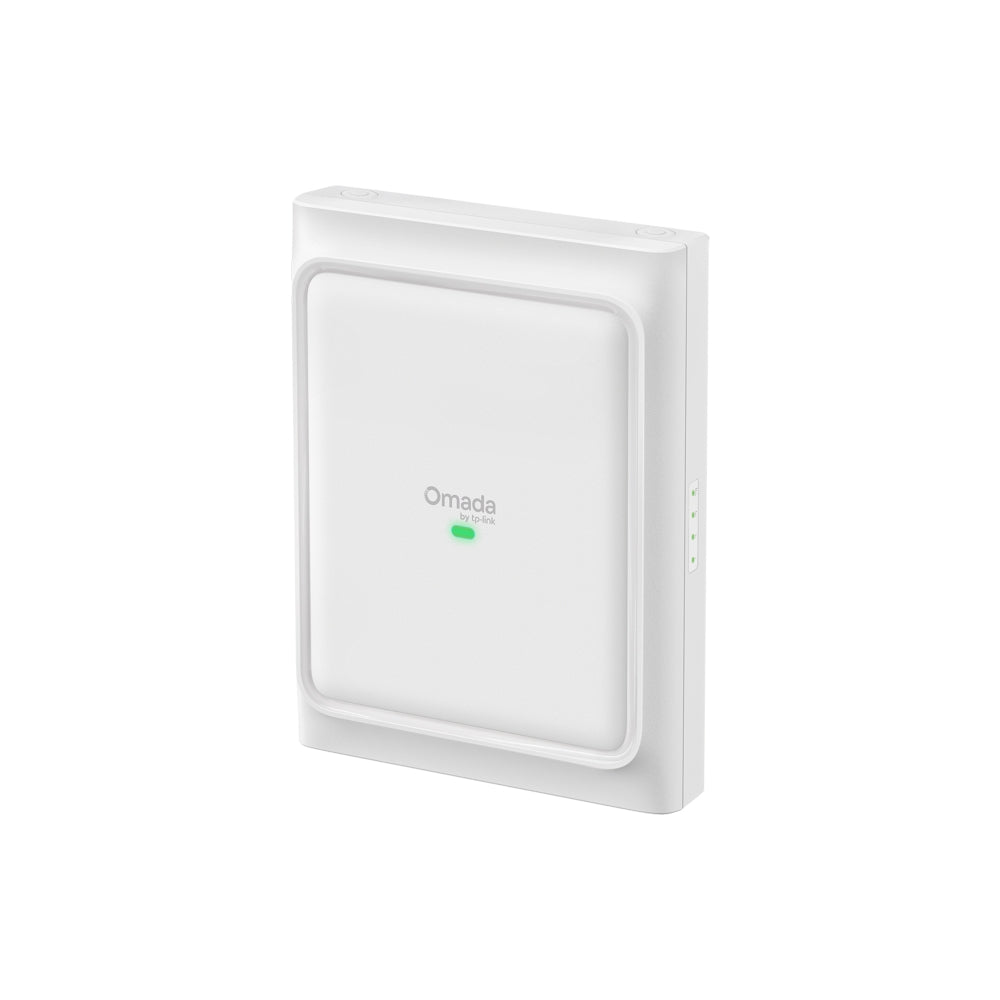

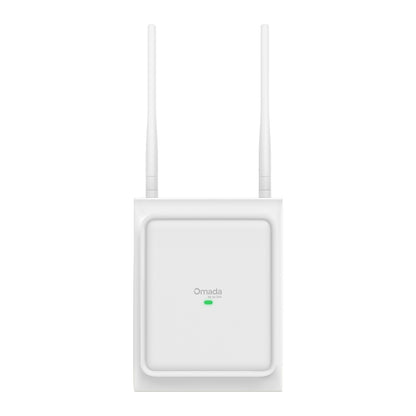

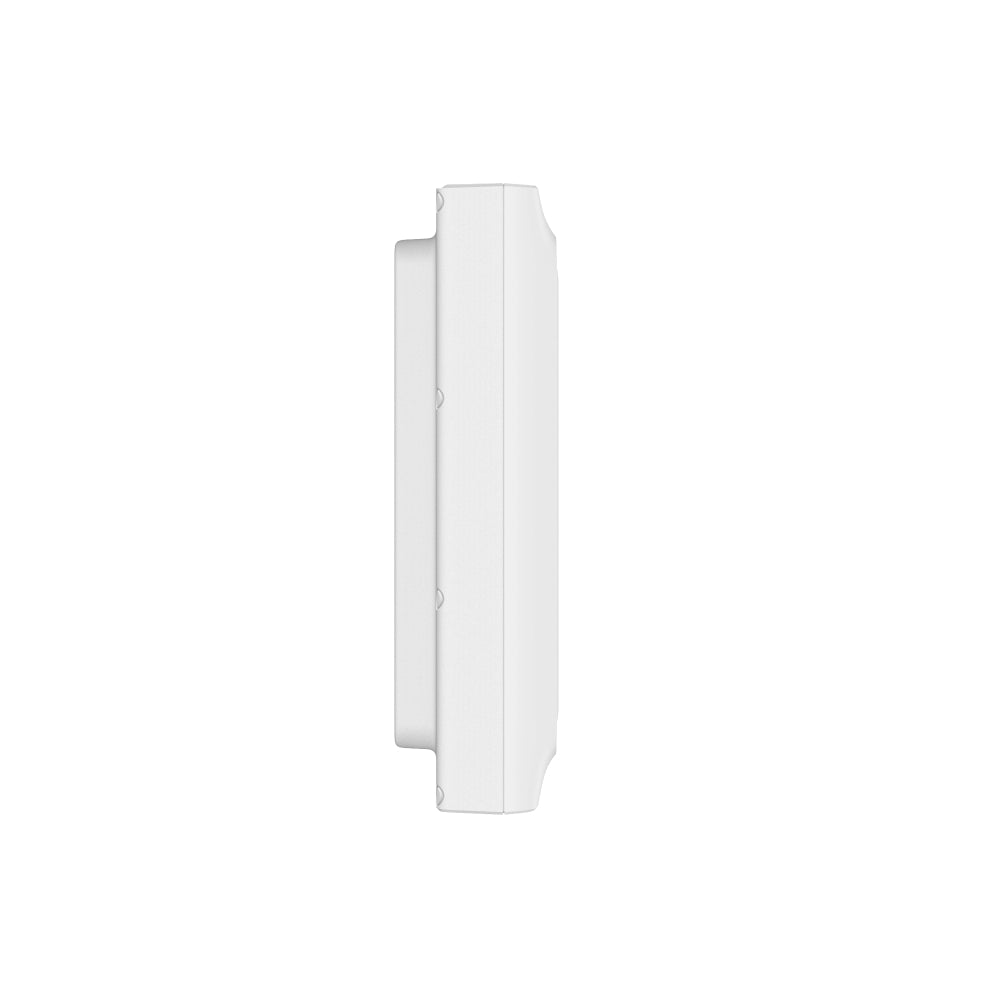

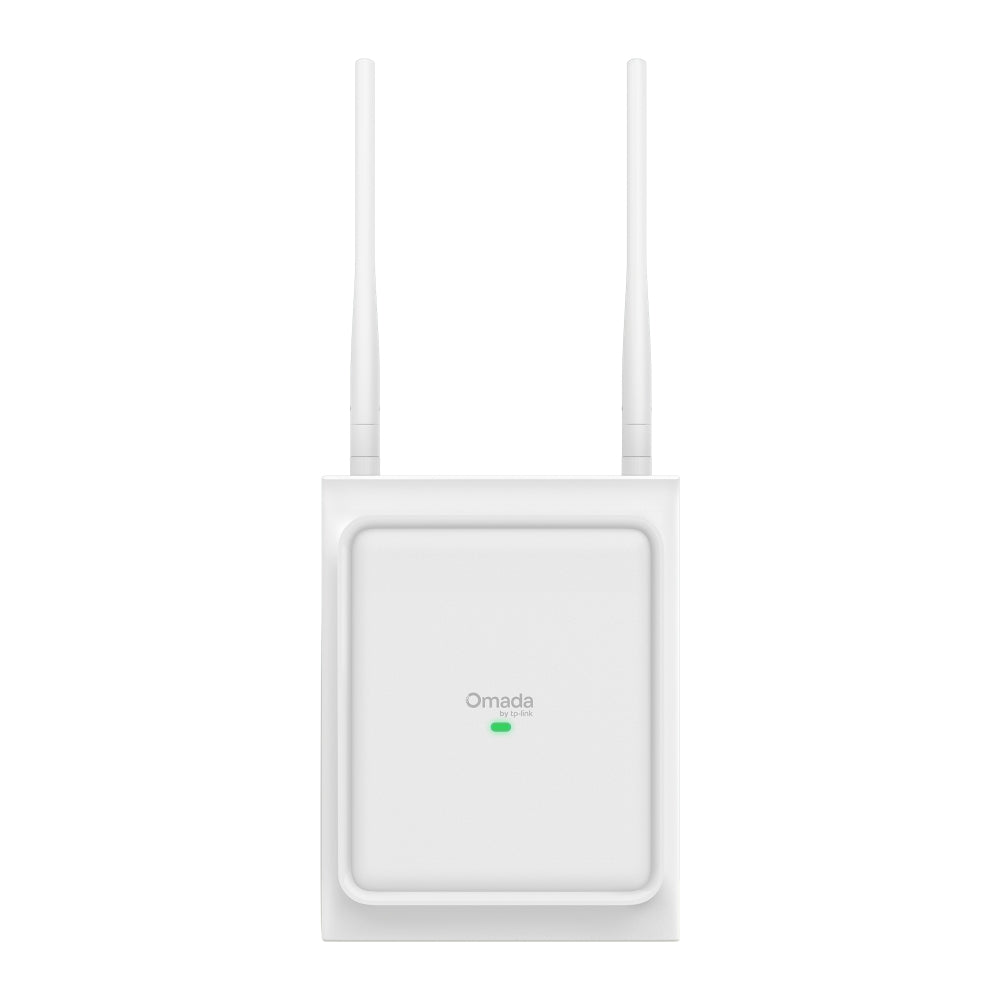

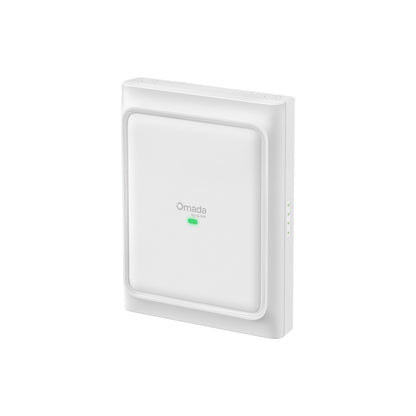

Omada BE3600 Indoor/Outdoor WiFi 7 Access Point with Directional/Omnidirectional Antennas
•Directional and Omnidirectional Antennas: Freely switch between modes via software for optimal signal control.**
•Plug & Play Auto-Sensing Antennas: Automatically detects antenna changes and switches between internal and external antennas as needed.
•4-Stream Dual-Band Wi-Fi 7: Up to 3.6 Gbps.†
•1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
•Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection.
•Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup.
•Advanced Features: Centralized management, mesh, and seamless roaming.
Specifications:
HARDWARE FEATURES

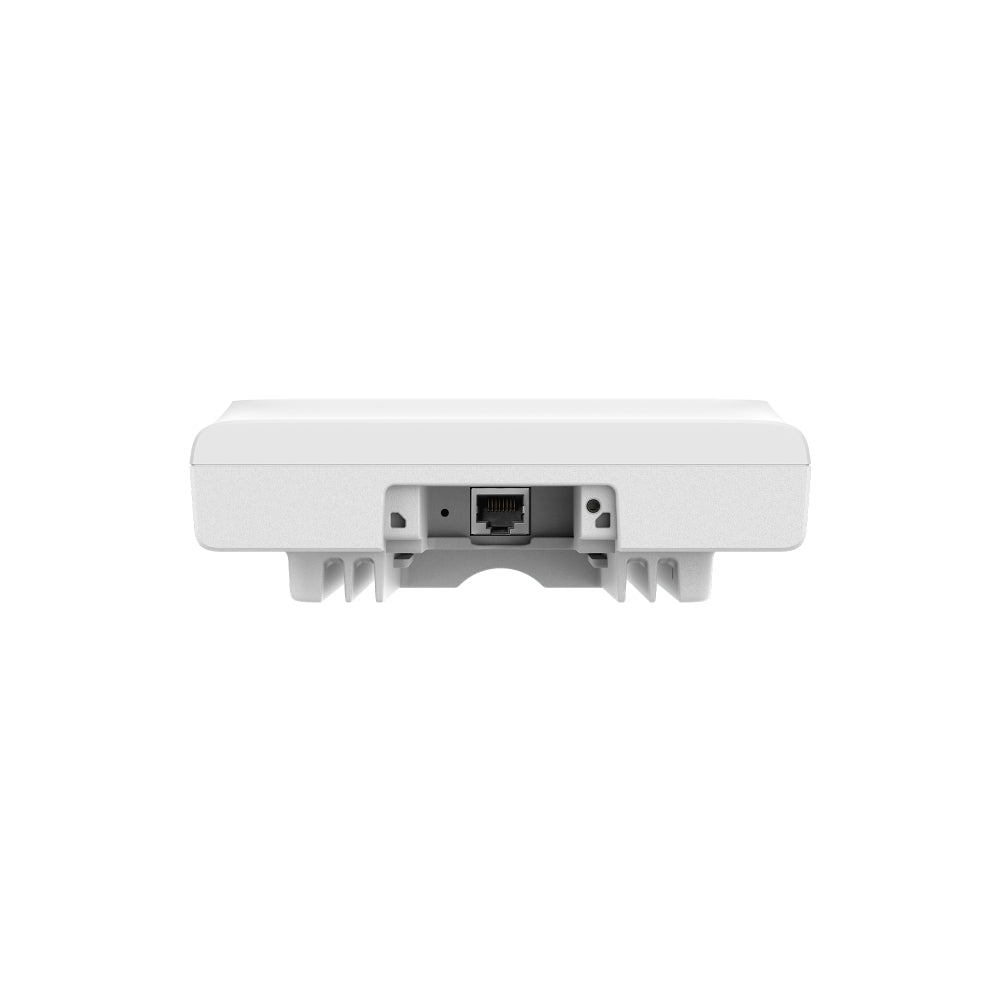

Interface: 1× 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45)
Button: Reset
Power Supply: 802.3at PoE
Max. Power Consumption: 18.4W (PoE+)
Dimensions: 8.19 × 6.3 × 2.17 in (208 × 160 × 55 mm)
Antenna:
• 2.4 GHz: 2× 4.5 dBi external omni; 2× 8.3 dBi internal directional (90° beamwidth)
• 5 GHz: 2× 5.3 dBi external omni; 2× 13.2 dBi internal directional (45° beamwidth)
Note: Gains are single‑antenna peak gains.
Bluetooth: BLE 5.2
Weatherproof Enclosure: IP66

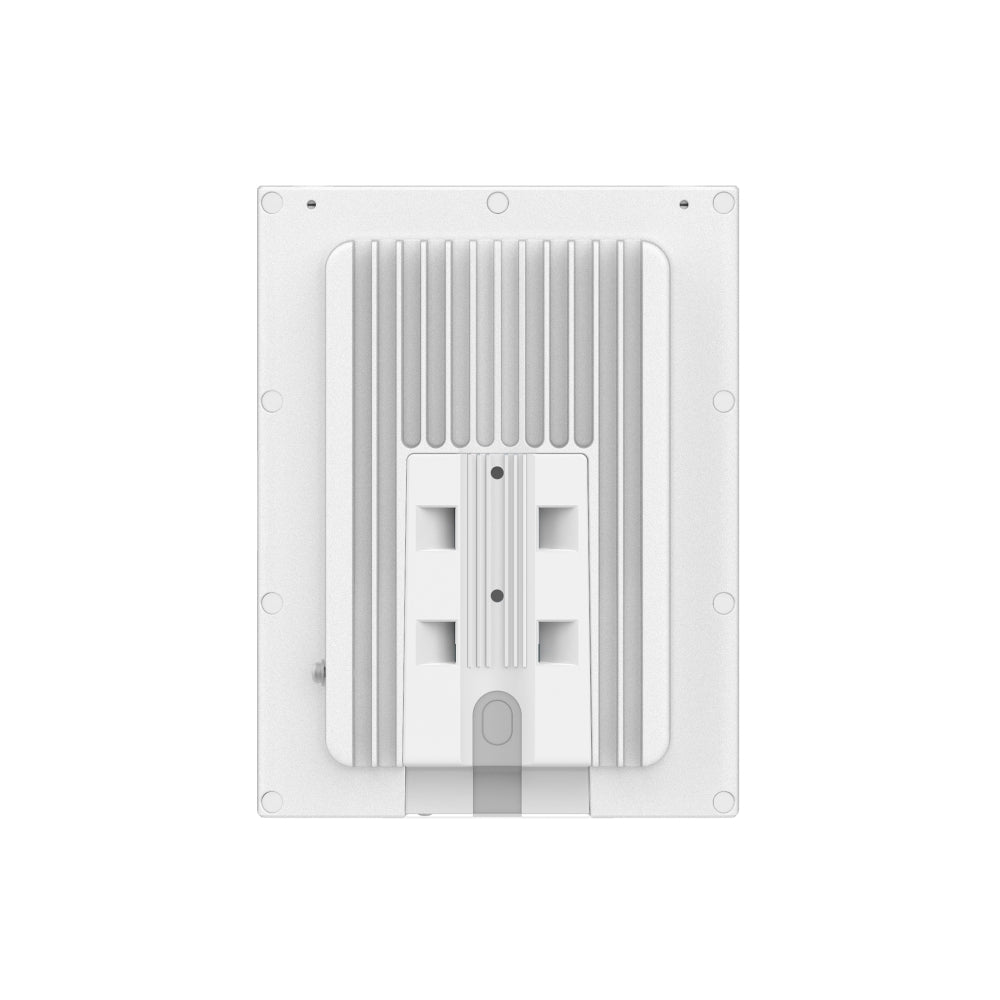

Mounting: Pole / Wall (kits included)
WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/g/b/n/ac/ax/be
Frequency: 2.4 GHz, 5 GHz
Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions: • 4k‑QAM • OFDMA • Multiple SSIDs (16 total, 8 per band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • MLO • Omada Mesh§ • Seamless Roaming (802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client) • Static/Dynamic IP
Wireless Security: • Captive Portal§ • Access Control • Wireless MAC Filtering • Client Isolation • SSID‑to‑VLAN Mapping • Rogue AP Detection • 802.1X • WPA/WPA2/WPA3 Personal/Enterprise • OWE
Transmission Power:
• CE (EIRP): 2.4 GHz 20 dBm; 5 GHz: 23 dBm (U‑NII‑1), 23 dBm (U‑NII‑2A), 30 dBm (U‑NII‑2C)
• FCC (Conducted): 2.4 GHz 25 dBm; 5 GHz: 26 dBm (U‑NII‑1), 24 dBm (U‑NII‑2A), 24 dBm (U‑NII‑2C), 26 dBm (U‑NII‑3)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: • Omada Cloud‑Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access: Yes (requires Omada controller)
Email Alerts: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging: Local / Remote Syslog
SSH: Yes
Web‑based Management: Yes
L3 Management: Yes
Multi‑site Management: Yes
Management VLAN: Yes
Zero‑Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
OTHERS
Certification: CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI
Package Content: • Access Point EAP725‑Outdoor • Waterproof Kit • Mounting Kit • Installation Guide
System Requirements: Windows XP/Vista/7/8/10/11, Linux
Environment: • Operating Temp: −30 to 70°C (−22 to 158°F) • Storage Temp: −40 to 70°C (−40 to 158°F) • Operating Humidity: 10–90% • Storage Humidity: 5–90%
Weight: Main Unit: 1.33 kg
